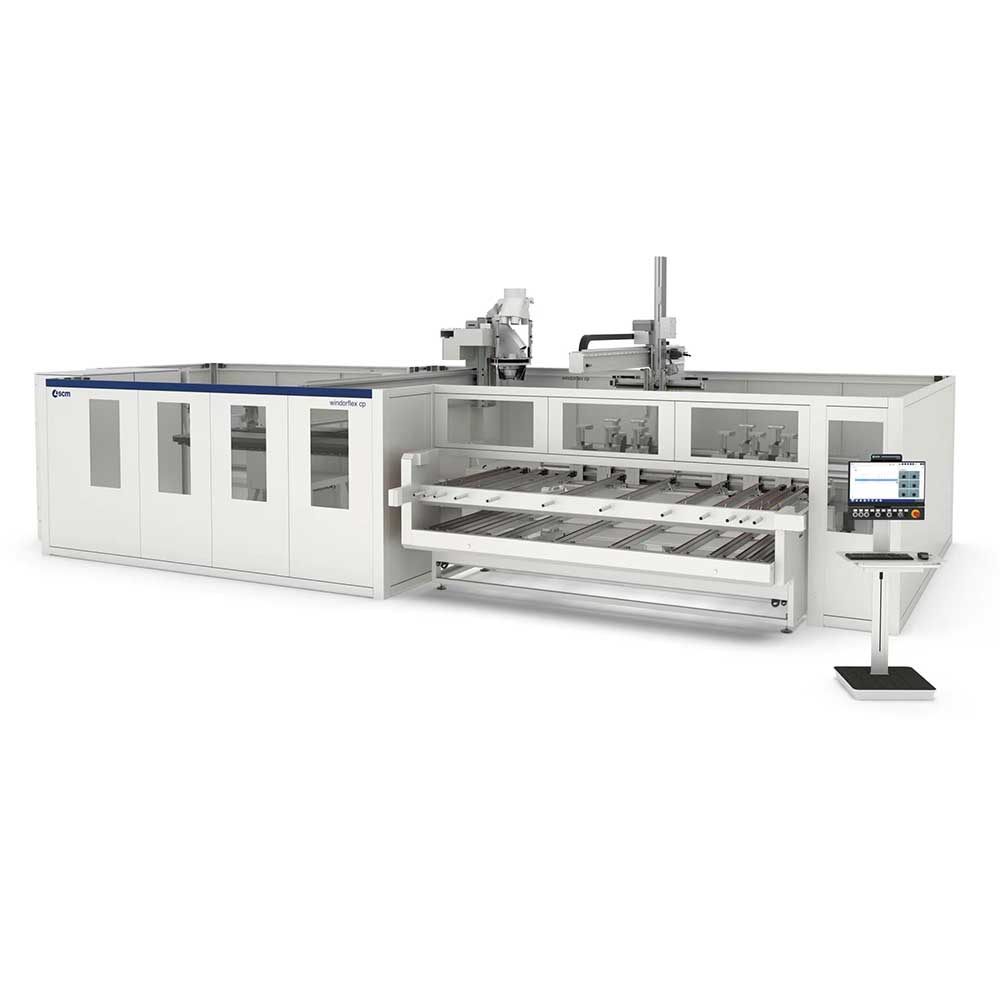

SCM WindorFlex CP

The most compact in its category.

SKU: SCM-WFCP Category: Brand:

Description

The SCM Windorflex CP is a compact, high-tech machining cell designed to perform all necessary operations for producing window frames, regardless of type. Its automatic workpiece loading and unloading system with front bench allows autonomous operation with minimal operator intervention. The automatic worktable, equipped with dedicated clamps, can process 1 to 4 workpieces in sequence, while the 4- and 5-axis electrospindle machining unit ensures best-in-class performance. Operation is simplified and optimized through the exclusive Maestro Active Windoor software, making the Windorflex CP the most compact and efficient solution in its category.

Max. work-piece length mm 1 x 3300
2 x 1350
Min. work-piece length mm 220
160, with specific cycle
Max. work-piece width mm 260
Min. work-piece width mm 40
Max. work-piece thickness mm 160
Min. work-piece thickness mm 35
X-Y-Z axes max. speed m/min 100-80-50
Standard electrospindles motor power kW 20
Standard tools stores n. - positions 1 x 48
