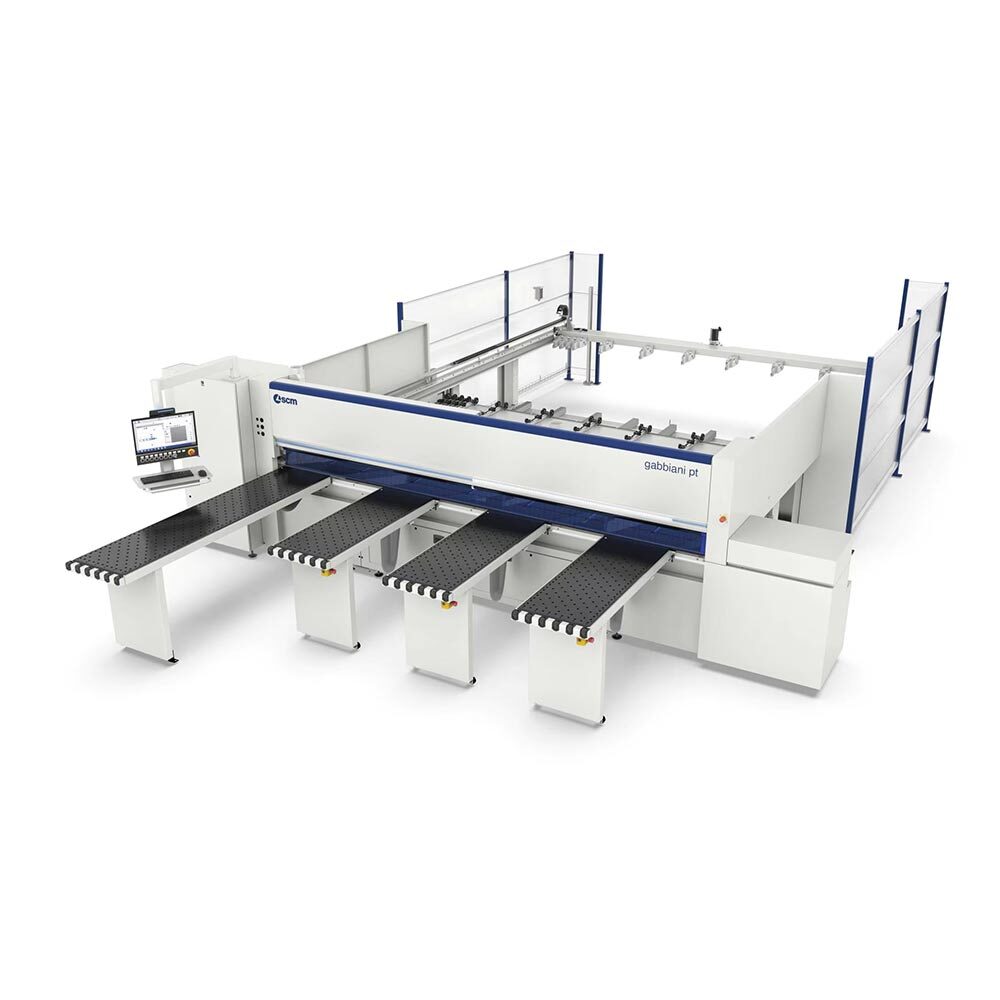

SCM Gabbiani PT

Description

The new SCM Gabbiani PT panel saw is an increasingly productive and intuitive automatic horizontal saw, ideal for craftsmen and small to medium-sized companies seeking a streamlined workflow. Designed for cutting panels of wood and derivatives such as chipboard, MDF, plywood, multilayer, and fiber, it features an intelligent LED bar system that guides the user during processing, loading, and forklift-assisted stack handling for safe and efficient production. Maximum productivity is supported by a high-capacity platform capable of handling any material or format. The powerful blade carriage accommodates up to 18 kW, while the FLEXCUT unit boosts efficiency by enabling simultaneous rip and cross cuts, increasing productivity by up to 30% and saving up to 20% of space. Fast and precise tool changes are made simple with the SAW-SET system, enhancing both ease of use and overall workflow efficiency.

Model PT80 PT95
Cutting length mm 3300/3800/4300 3300/3800/4300
Cutting depth on platform mm 1850-2200 1850-2200
Max. height of panel stack mm 600 600
on platform with support beams
Blade projection mm 80 95
Saw carriage variable speed m/min (opt.)0-120 0-120
Pusher variable speed m/min (opt.) 70 70
Main blade motor kW (opt.) 7,5 (9) (11) 7,5 (9) (11)
(S6 - 40%) - 50Hz (stardelta-start)
Motor power with inverter kW (opt.) (11) (15) (11) (15) (18)
Scoring unit blade motor 50 Hz kW 1,5 1,5
Main blade 50 Hz rpm 4650 4650
Scorer speed rpm 5850 5850
Main blade diameter mm 340 370
Scorer blade diameter mm 200 200
Number of clamps std 5 5
