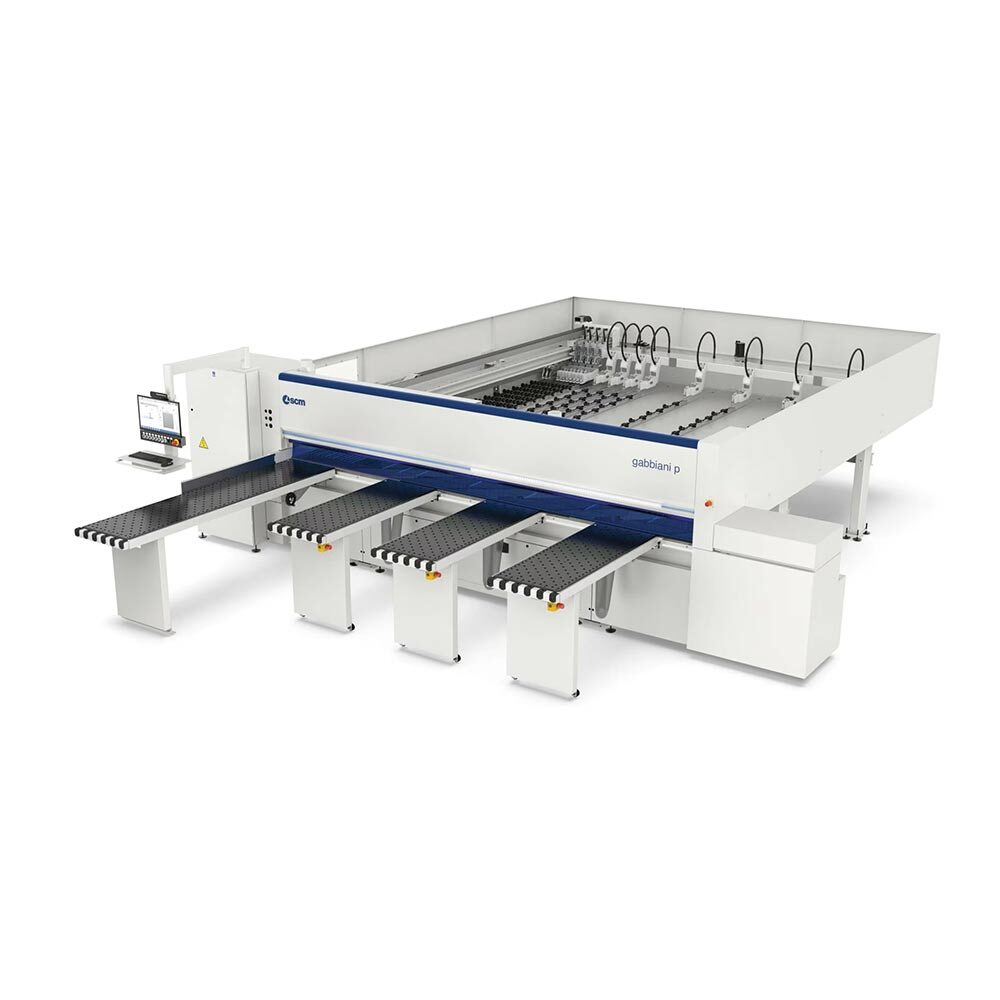

SCM Gabbiani P

Description

The SCM Gabbini P panel saw is designed for a streamlined and easy workflow, ideal for cutting wood panels and derivatives such as chipboard, MDF, plywood, multilayer, and fiber. Its intelligent LED bar system provides continuous guidance during processing and loading, ensuring intuitive operation and safe production monitoring. The machine’s powerful blade carriage supports up to 18 kW, while the FLEXCUT unit enhances flexibility and productivity by allowing simultaneous rip and cross cuts, increasing efficiency by up to 30% and saving up to 20% of space. Additionally, the innovative SAW-SET system enables fast and precise electronic tool adjustments, making tool changes effortless and boosting overall productivity.

Model P60 P80 P95
Cutting length mm 3300/3800/4300 3300/3800/4300 3300/3800/4300
Blade projection mm 60 80 95
Saw carriage variable speed m/min (opt.) 6 - 60 (0-120) 6 - 60 (0-120) 6 - 60 (0-120)
Pusher variable speed m/min (opt.) 60 (70) 60 (70) 60(70)
Main blade motor power kW (opt.) 7,5 (9) (11) 7,5 (9,11) 7,5 (9) (11)
(S6 - 40%) - 50Hz (stardelta-start)
Motor power with inverter kW (opt.) (11) (11) (15) (11) (15) (18)
Scoring unit blade motor - 50Hz kW 1,5 1,5 1,5
Main blade - 50Hz rpm 4650 4650 4650
Scorer speed rpm 5850 5850 5850
Main blade diameter mm 370 370 370
Scorer blade diameter mm 200 200 200
Number of clamps std 5 5 5
