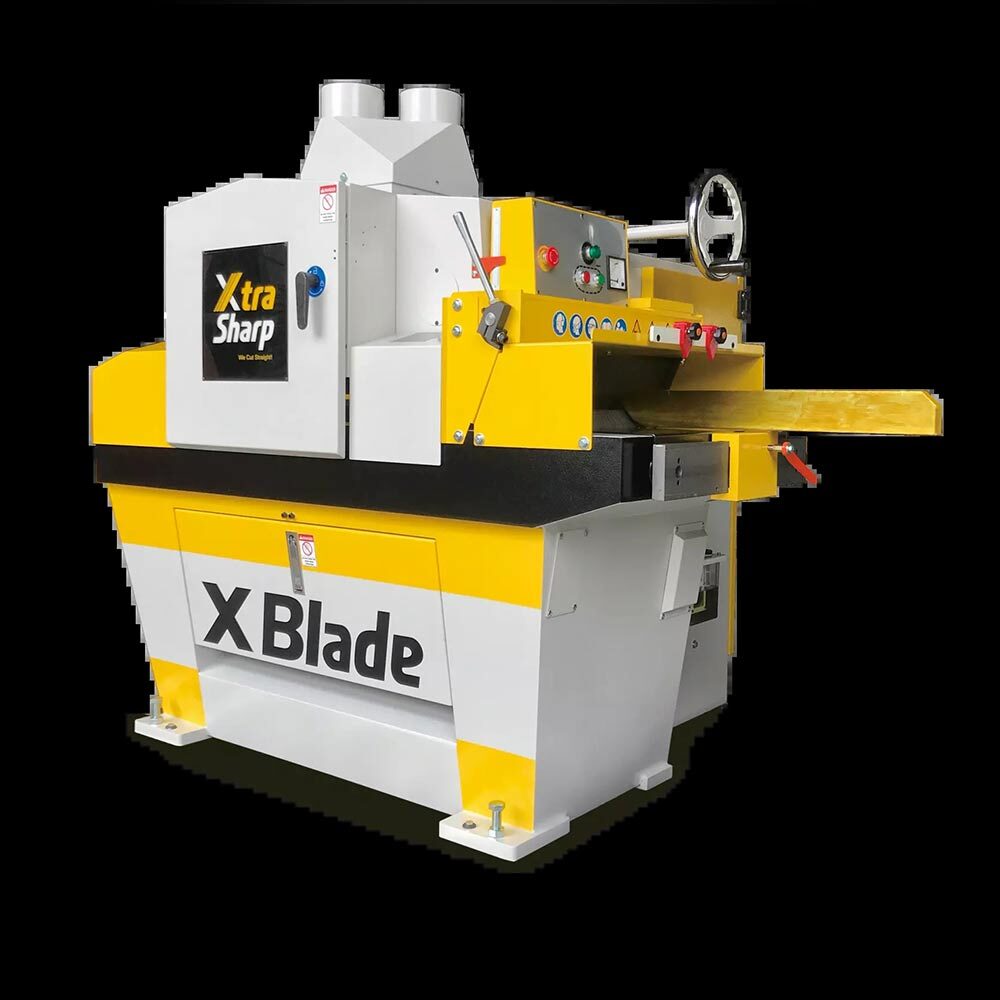

Xtra-Sharp X-Blade Multi Rip Saw

Description

This high-throughput, heavy-duty multirip saw rips wood into multiple pieces with multiple blades, producing straight and smooth edges in a single step while maintaining excellent machining stability in production. Built with a robust welded-steel frame, it features a precision saw arbor for clean cutting and an eccentric spindle design for accurate adjustments. Powered by a 40 HP belt-drive motor (SJ-120) or 50 HP belt-drive motor (SJ-150/170) with 2 HP/3 HP variable feeding speeds, the machine includes a 300 mm cast-iron chain conveyor with pressure plates and four rollers to keep material aligned, supported by automatic lubrication. Operator safety is ensured with CE-certified guards, a locking system for the saw-blade access door, an electrical cabinet with safety module and power lock, and three anti-kickback fingers on the top and bottom of the cutting path, delivering a powerful, precise, and secure solution for high-volume multirip cutting.

Max. workpiece thickness 125mm (Long plate)
150mm (Short plate)
Min. workpiece length 300mm (Long plate)
600mm (Short plate)
Max. workpiece width 680mm
Feed chain width (Cutting range) 300mm
Table surface 1630 × 690mm
Table height 808mm
Pressure roller / Dia. 4pcs / Ø100mm
Max. Saw blade dia. x bore Ø420mm × 70mm
Spindle speed 3200rpm
Feeding speed 6.7~35m/min
Spindle power 50HP (Opt. 60/75HP)
Feeding power 3HP (Opt. 3HP inverter)
Dust collection hole x sug. power 2pcs / Ø152mm x 5-10HP
Machine size (LxWxH) 2090 × 1500 × 1740mm
Packing size (LxWxH) 1840 × 1560 × 1795mm
N.W. / G.W. 2040 / 2180kg
Voltage as specified by customer
