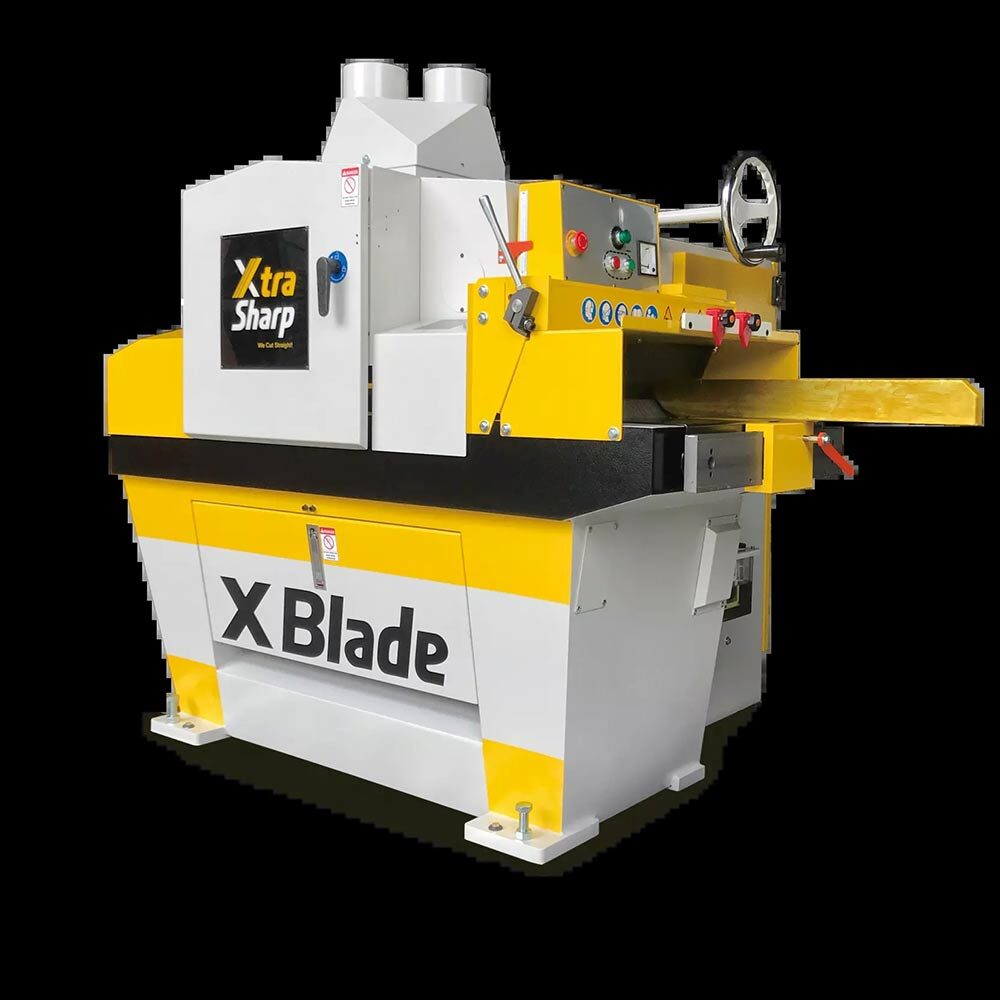

Xtra-Sharp ShortCut Multi Rip Saw

Description

The Xtra-Sharp ShortCut Multi Rip Saw is engineered to rip wood into multiple pieces in a single pass, producing straight, smooth edges with excellent machining stability for continuous production. Its robust welded-steel frame and precision saw arbor ensure clean, accurate cutting, while the eccentric spindle design allows precise adjustments. The machine is powered by a 40 HP belt-drive motor (SJ-120) or 50 HP belt-drive motor (SJ-150/170) with 2 HP/3 HP variable-speed feeding, and features a 300 mm cast-iron chain conveyor with pressure plates and four rollers to maintain material alignment, supported by automatic lubrication. Operator safety is prioritized with CE-certified guards, a locking system for the saw-blade access door, an electrical cabinet with safety module and power lock, and three anti-kickback fingers on the top and bottom of the cutting path, making the ShortCut a powerful, precise, and secure solution for high-quality multirip cutting.

Max. workpiece thickness 100mm (Long plate)
120mm (Short plate)
Min. workpiece length 250mm (Long plate)
600mm (Short plate)
Max. workpiece width 680mm
Feed chain width (Cutting range) 300mm
Table surface 1630 × 690mm
Table height 850mm
Pressure roller / Dia. 4pcs / Ø100mm
Max. Saw blade dia. x bore Ø360mm × 70mm
Spindle speed 3200rpm
Feeding speed 6.7~35m/min
Spindle power 40HP (Opt. 50HP)
Feeding power 2HP (Opt. 2HP inverter)
Dust collection hole x sug. power 2pcs / Ø152mm x 5-10HP
Machine size (LxWxH) 2070 × 1500 × 1715mm
Packing size (LxWxH) 1820 × 1560 × 1770mm
N.W. / G.W. 1940 / 2080kg
Voltage as specified by customer
