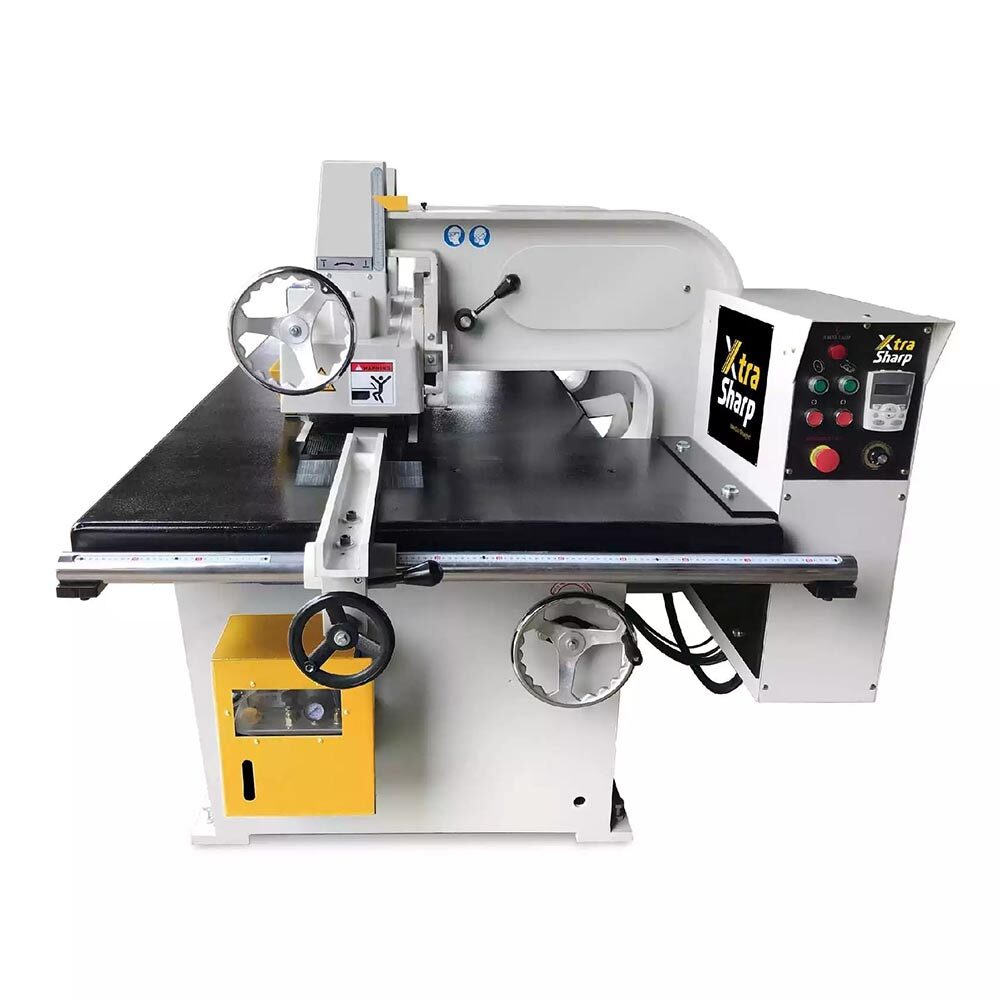

Xtra-Sharp Advanced SA-13/20/22DUal Chain Straight Line Rip Saw

Description

The Xtra-Sharp Advanced SA-13/20/22 Dual-Chain Straight Line Rip Saw delivers exceptional durability and precision thanks to its welded-steel frame and rugged FC 28-30 cast column with worm-gear drive, combined with a bottom saw arbor for superior cutting stability. Powered by 15 HP or 20 HP direct-drive spindle motors and a 2 HP/3 HP variable-speed feeding system, it uses a dual-chain conveyor with V-shaped cast-iron rails and eight pressure rollers to securely guide material through every cut—while automatic chain lubrication ensures smooth continuous operation. The dual-purpose light fence supports both ripping and splitting tasks, and safety is built in with CE-compliant guards, a locking system on the access door, a safety-module-equipped electrical cabinet with power lock, and anti-kickback fingers mounted both above and below the blade.

Max. cutting thickness 120mm
Min. cutting length 250mm
Max. cutting width 560mm
(Std fence on right) (660mm w/max thick. 85mm)
Max. cutting width 560mm
(Auto fence on right) (610mm w/max thick. 85mm)
Table surface 2000 × 1190mm
Pressure roller / Dia. 8pcs / Ø70mm
Saw blade dia. x bore Ø355~455mm x Ø50.8mm (Opt. 30mm)
Spindle speed 3000rpm
Feeding speed (Variable) 11~26m/min
Feeding speed (Inverter) 11~26m/min (Opt.)
Spindle power 15HP (Opt. 20HP)
Feeding power 2HP (Opt. 2HP inverter)
Dust collection hole x sugg. power Ø125mm x 5HP
Machine size (LxWxH) 2220 × 1560 × 1450mm
Packing size (LxWxH) 2270 × 1690 × 1750mm
N.W. / G.W. 1635 / 1700kg
Voltage as specified by customer as specified by customer
