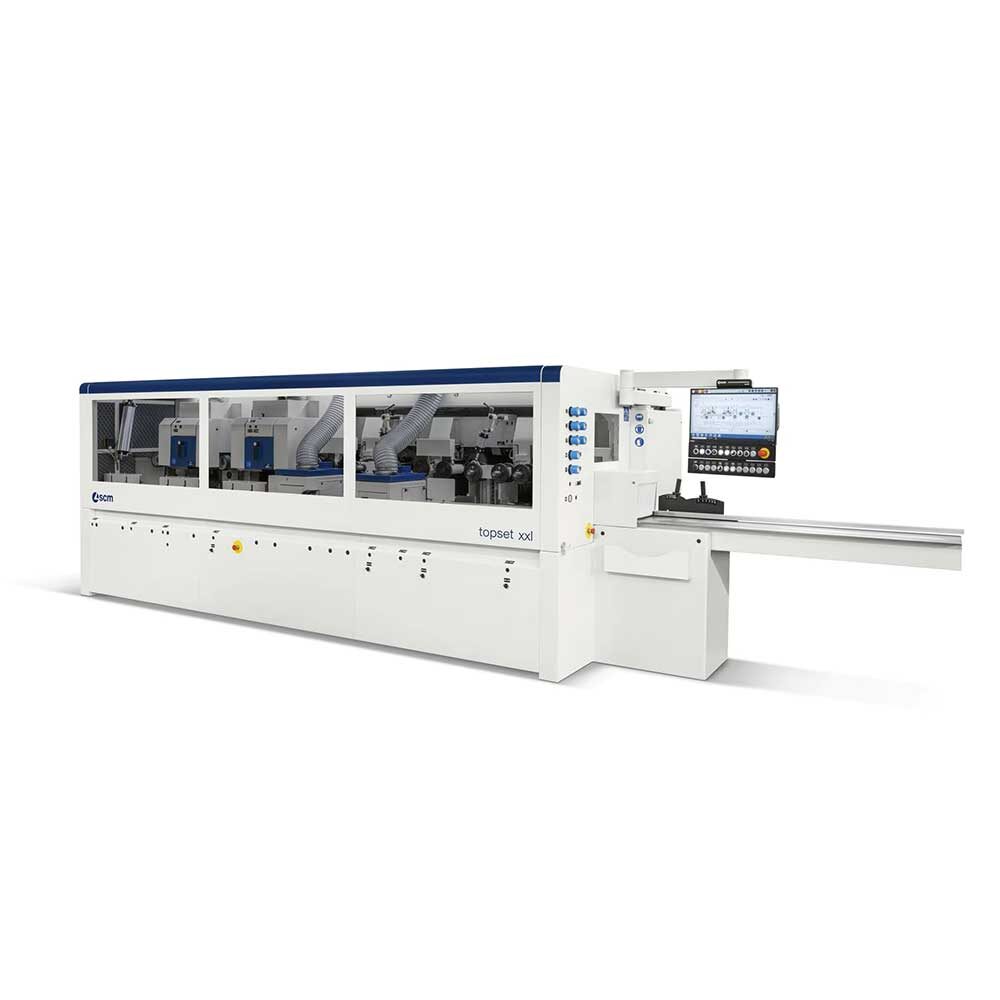

SCM Topset XXL

SCM Topset XXL

Designed with the aim to expand the range of planning-moulding machines to meet increasing customer requirements.

SKU: SCM-TXXL Category: Brand:

Description

The SCM Topset XXL is designed for exceptional versatility, capable of machining beams, prismatic profiles, frames, linear components, and a wide range of profiles for windows, doors, furniture, garden structures, and even boat furnishings. Its robust machine structure supports an extensive range of workpiece widths and thicknesses, enabling the production of highly varied components. High-performance HSK spindles reaching up to 12,000 rpm ensure outstanding finish quality even at elevated working speeds, while newly designed, easily interchangeable worktables provide perfect workpiece stability and quick, accurate positioning for any profile. The MOBILE PC electronic control eliminates errors by making programming intuitive and offering clear, detailed information and reports throughout the machining process.

Minimum working width (finished section) mm 20
Maximum working width (finished section) mm 320
Minimum working thickness (finished section) mm 10
Maximum working thickness (finished section) mm 200
Feed speed m/min 4 ÷ 40
Motors power kW (HP) 7,5 ÷ 40
Spindles rotating speed rpm 6.000
[8.500 opt.]
[6.000 12.000 with HSK]
Diameter of tool-holder spindles mm 50 [40 opt.]
Axial adjustment of vertical spindles from worktable mm 100
[95 with HSK]
Axial adjustment of horizontal spindles from right fence mm 60
Min./max. diameter of planing spindle and reference engraver tools mm 120/145 - 140/165
Min./max. diameter of planing tools (planing spindle excluded) mm 100/200
Min./max. diameter of profiling tools (planing spindle excluded) mm 100/250
Worktable height mm 950 ± 15
Diameter of feeding rollers mm 140

Topset-xxl_rev00_mag25_EN.pdf
