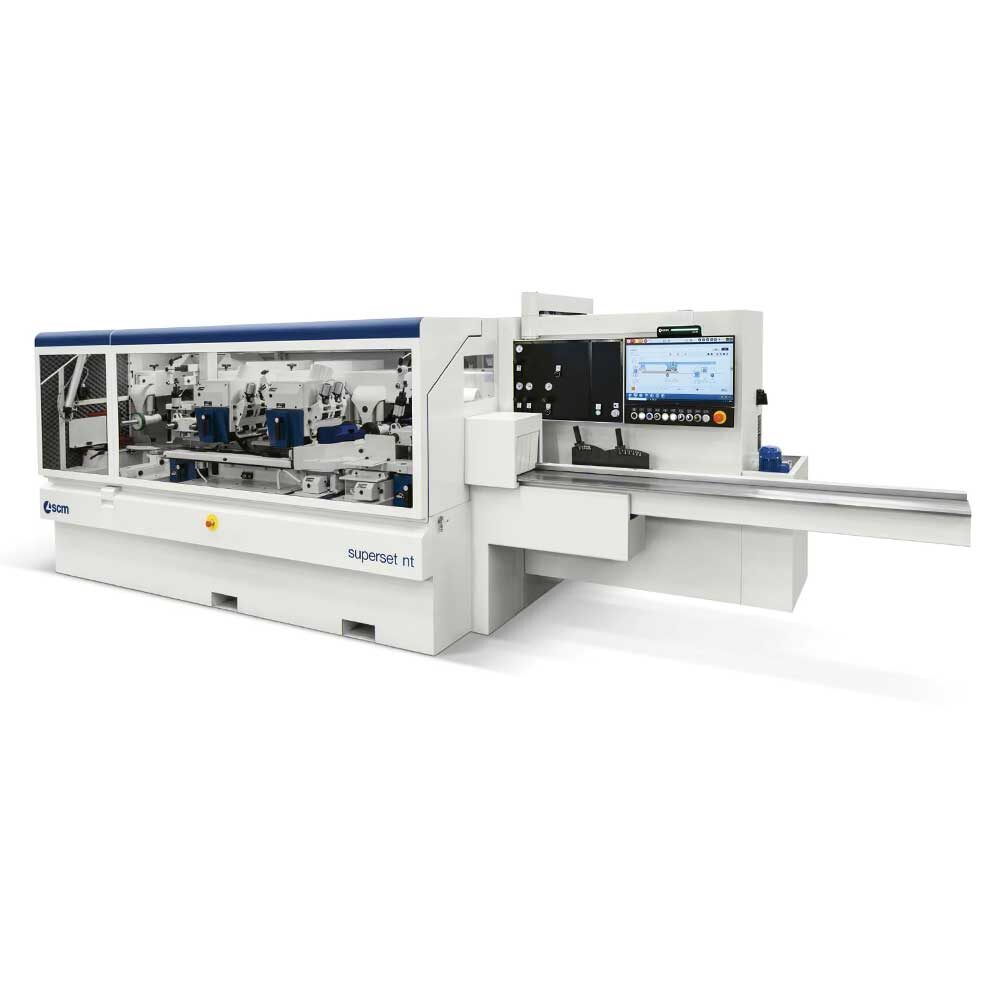

SCM Superset NT

SCM Superset NT

Ideal for companies working multiple shifts and/or small batches.

SKU: SCM-SUPNT Category: Brand:

Description

The SCM Superset NT is designed for the production of window, door, stair, bead, frame, and furniture profiles, built on a structure engineered to provide the operator with safe, ergonomic working conditions. Its MOBILE PC electronic control makes programming intuitive, delivering clear, detailed information at all times. Productivity is significantly enhanced by the SET-UP system, which allows tool changes and adjustments in just seconds—reducing set-up time by up to 20×. With ten possible machine configurations, including combinations of two right vertical spindles, two top horizontal spindles, and optional universal spindle, the Superset NT can be tailored to meet a wide range of production needs. HSK technology further increases profile versatility while reducing downtime and improving finishing quality, all while enhancing operator ergonomics.

Minimum working width (finished section) mm 25 [15 opt.]
Maximum working width (finished section) mm 240 [260 opt.]
Minimum working thickness (finished section) mm 6
Maximum working thickness (finished section) mm 120 [200 opt.]
Feed speed m/min 5 ÷ 25 [6 ÷ 40 opt.]
Motors power kW (HP) 4 (5,5) [up to 18,5 (25) opt.]
Spindles rotating speed rpm 6000 [8500 opt.]
Diameter of tool-holder spindles mm 40 [50 opt.]
Axial adjustment of vertical spindles from worktable mm 80 [75 opt. with HSK]
Axial adjustment of horizontal spindles from right fence mm 45
Min./max. diameter of profiling tools mm 100/200
Available units n. 4 ÷ 8

Superset-NT_rev05_ott23_EN.pdf
