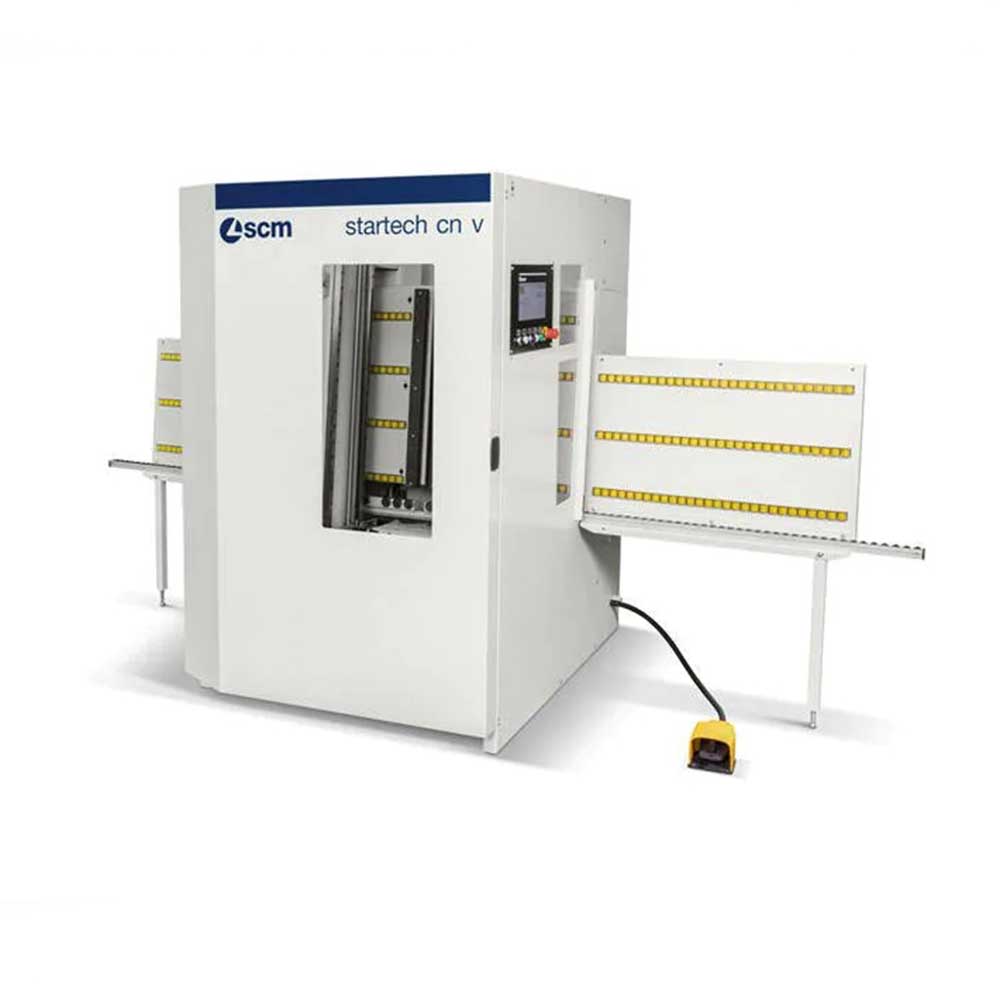

SCM Startech CN V

Description

Featuring an intuitive interface for fast programming and high-speed performance with axis speeds up to 20 m/min, the Startech CN V minimizes tooling time and maximizes productivity. Its compact footprint of just 5.5 m² makes it ideal for workshops with limited space, while its exceptional price-to-performance ratio makes advanced CNC technology accessible to all. It performs vertical drilling on panel surfaces, horizontal drilling on all four sides, and grooving along the X-axis with an integrated disc cutter.

Max. panel dimensions X-Y-Z mm 3000 x 900 x 50
Min. panel dimensions X-Y-Z mm 300 x 90 x 10
Max speed X-Y axes 20
Drilling head
Spindles (X axis) n. 2 (1+1)
Spindles (Y axis) n. 2 (1+1)
Spindles (Z axis) n. 7 (4X-4Y di cui uno in comune)
Lama integrata fissa, con taglio in direzione X
Blade diameter mm 125
Blade thickness mm 6
Motor power kW 2,2
Spindles rotating speed giri/min 4460
Blade rotation speed giri/min 5700
