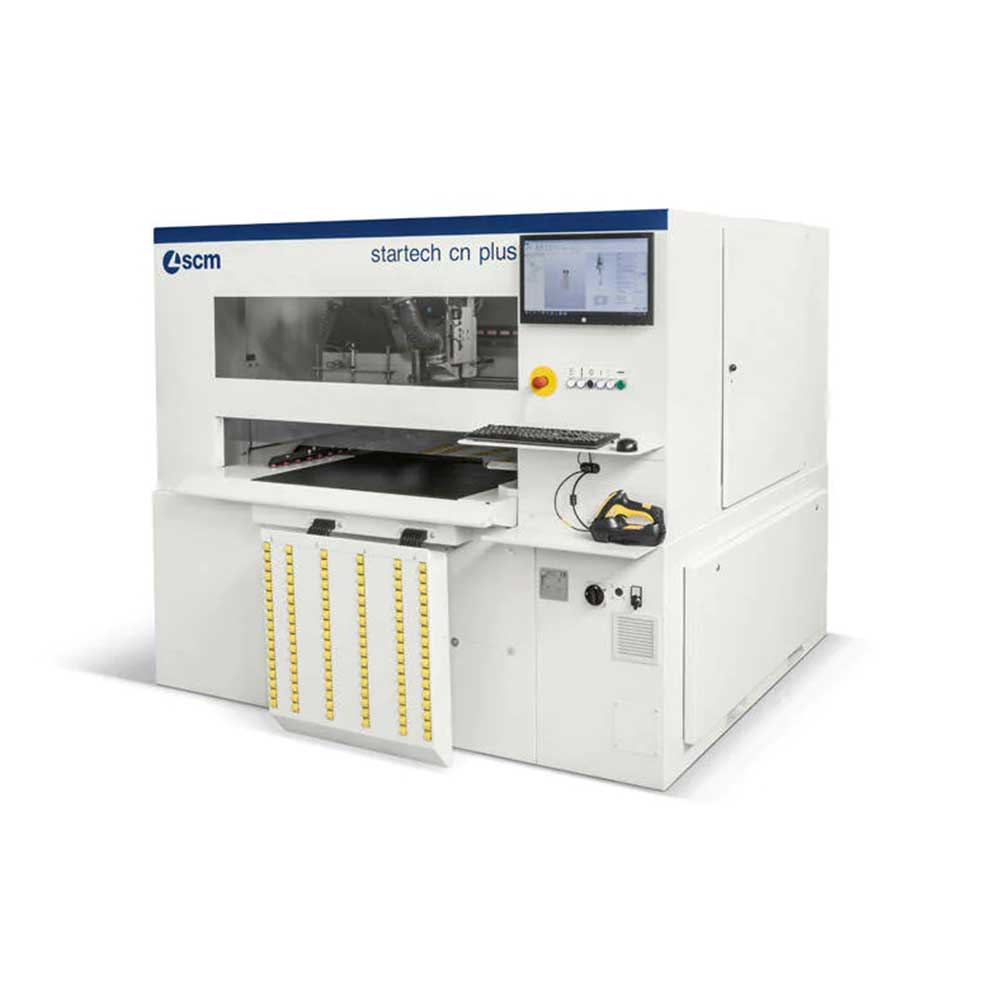

SCM Startech CN Plus

Description

The Startech CN Plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. It features 8 independent vertical spindles and 6 horizontal spindles. Movement in X, Y and Z takes place on prismatic linear guides and pre-loaded ball bearing slides. With an axis speed of 4m/min, tooling and machining operations are reduced to the minimum. No operator’s intervention is required for the worktable and machine set-up according to the panel dimensions.

Max. panel dimensions X-Y-Z mm 3000 x 900 x 50
Min. panel dimensions X-Y-Z mm 300 x 90 x 10
Max speed X-Y axes 20
Drilling head
Spindles (X axis) n. 2 (1+1)
Spindles (Y axis) n. 2 (1+1)
Spindles (Z axis) n. 7 (4X-4Y di cui uno in comune)
Blade diameter mm 125
Blade thickness mm 6
Motor power kW 2,2
Spindles rotating speed giri/min 4460
Blade rotation speed giri/min 5700
