SCM Startech CN K

Ideal for all types of milling, decorations, engraving, signboard creation and 3D model prototyping.

SKU: SCM-SCNK Category: Brand:

Description

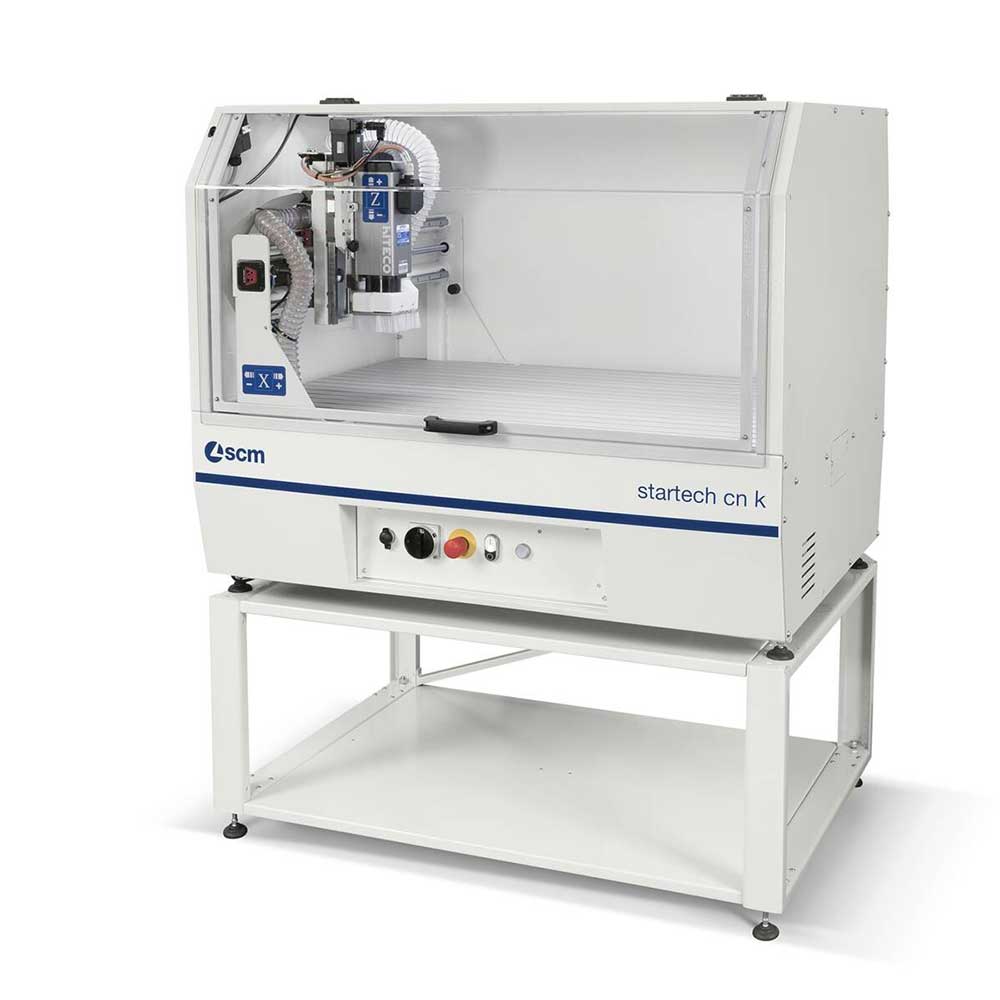

The SCM Startech CN K is a versatile CNC machining center designed for precision, safety, and creative flexibility. Its integral cabin with internal LED lighting ensures maximum operator protection and a clean working environment. Featuring an open virtual human-machine interface, it can import G-code from most CAD/CAM software for easy programming. Equipped with a powerful 2.4 kW electrospindle with R25 tool-chuck—typically found on higher-end machines—and a 4th interpolating axis for lathe-style operations, the Startech CN K enables complex machining tasks with no limits to creativity.

Worktable dimensions mm 1170x760
X-Y-Z stokes mm 915-610-176
Z-axis work-piece clearance mm 160
X-Y-Z axes max. speed m/min 5-5-2,5
Max. tool diameter mm 60
Max. tool-holder diameter mm 16
Electrospindle max speed rpm 24.000
Electrospindle motor power kw 2,4 kW (S6)
