Description

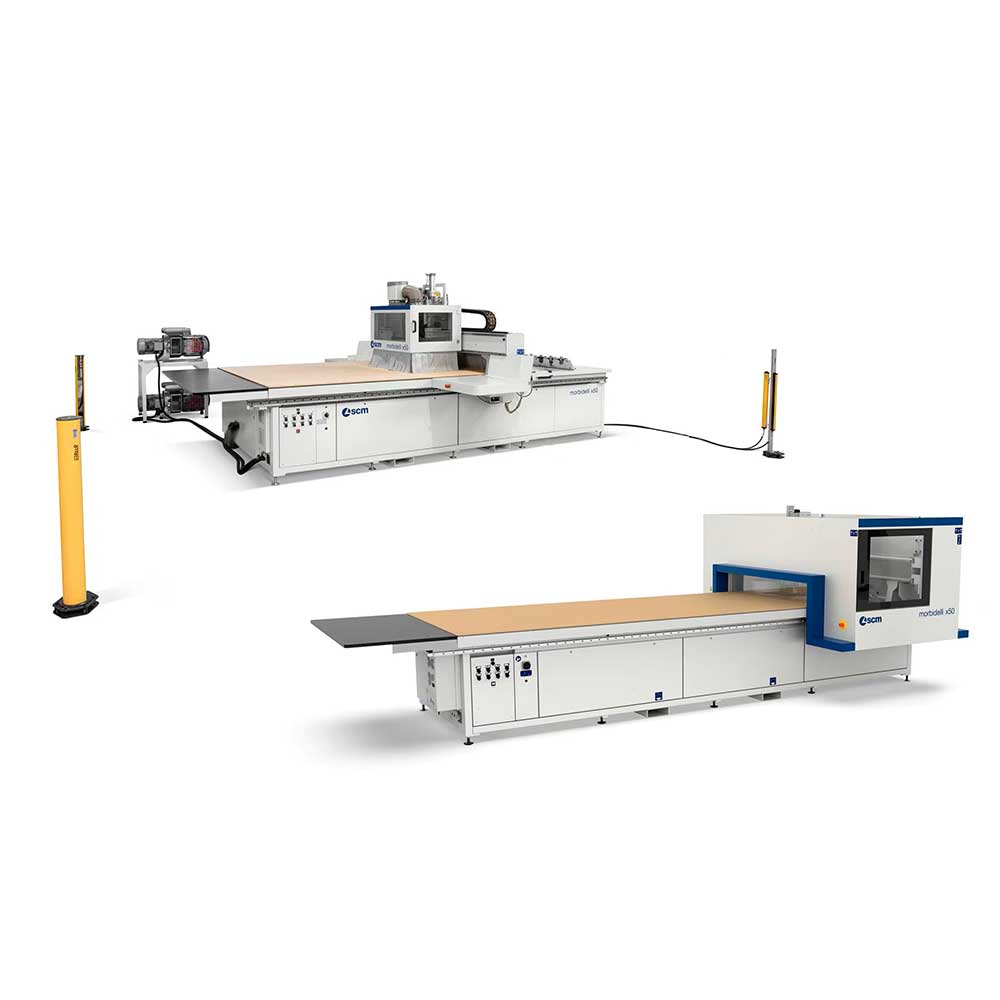

The Morbidelli X50 CNC routing machine combines precision, efficiency, and user-friendly operation for modern woodworking. Its High Grip Vacuum worktable ensures maximum clamping efficiency across the entire surface, while the Smart Cut algorithm optimizes cutting sequences without affecting nesting efficiency. The SMS – Spoilboard Management System keeps operators informed about the condition of the spoilboard, and the removable XS Device allows accurate referencing of small pieces that cannot reach the stops.
Working Areas: X-Y axes dimensions mm 2556x1296
3756x1596
3756x1896
3156x2216
4356x2216
Axes:
Vectorial speed X-Y axes “PRO-SPEED” version m/min 57
Vectorial speed X-Y axes “PRO-SPACE” version m/min 47
Z-axis panel passage mm 140
Routing unit:
3 axis motor power (up to) kW 9,5
Rotation speed (up to) rpm 24000
Available tools on tool changer (up to) positions 12
Drilling unit:
Independent vertical spindles (up to) n. 12
Independent horizontal spindles (up to) n. 6
Rotation speed (up to) rpm 8000
Integrated blades (up to) n. 1
Integrated blade in X, diameter mm 125
