Description

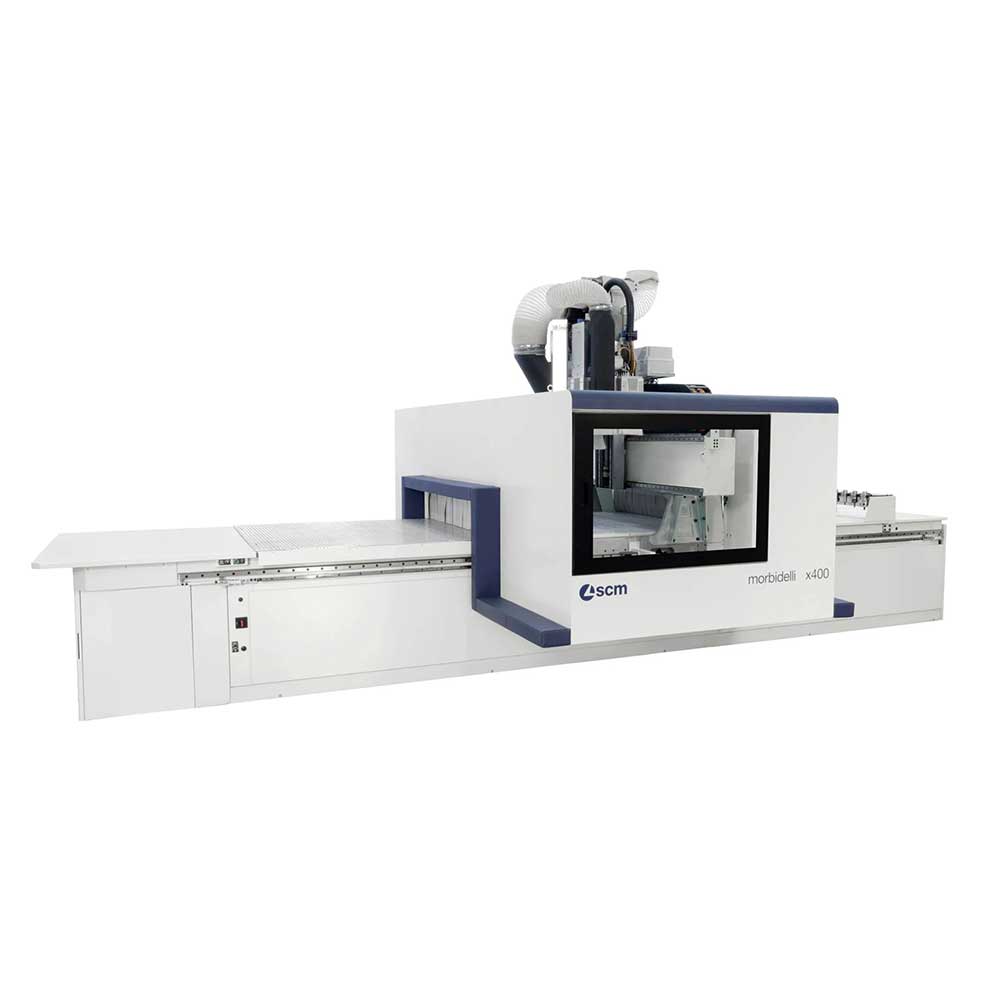

The SCM Morbidelli X200/X400 Nesting CNC Machining Centers are engineered for flexible, batch-one production, combining high performance, maximum configurability, and exceptional productivity. With X-PODs and JQX 5-axis electrospindles, any machining process can be performed without removing the spoilboard, including 3D operations. High-speed nesting at 50 m/min, advanced drilling heads, and a FAST tool changer save significant production time, while the X-Vacuum System ensures optimal holding for small or breathable workpieces. Its highly modular design allows configuration to suit any material flow or production layout, making it ideal for demanding, modern woodworking operations.
Model x200 x400
Working areas:
X-Y axes dimensions mm 2556x1296
3156x1596
3756x1596
3756x1896
3156x2216
4356x2216
Axes:
Vectorial speed X-Y axes m/min 84 (Pro-Space)
113 (Pro-Speed)
Z axis panel passage mm 150 180
Routing unit:
Motor power (3-4 axes up to) kW 15
Motor power (5-axis up to) kW 13,5
Rotation speed (up to) rpm 24000
Available tools on tool changer (up to) positions 38 53
Drilling unit:
Independent vertical spindles (up to) n. 21
Independent horizontal spindles (up to) n. 12
Rotation speed (up to) rpm 8000
Integrated blades n. 2
Integrated blade in X, diameter mm 125
0-90° blade unit:
Motor power (up to) kW 2,2
Rotation speed (up to) rpm 6000
Auxiliary routing unit:
Motor power (up to) kW 5,4
Rotation speed (up to) rpm 24000
