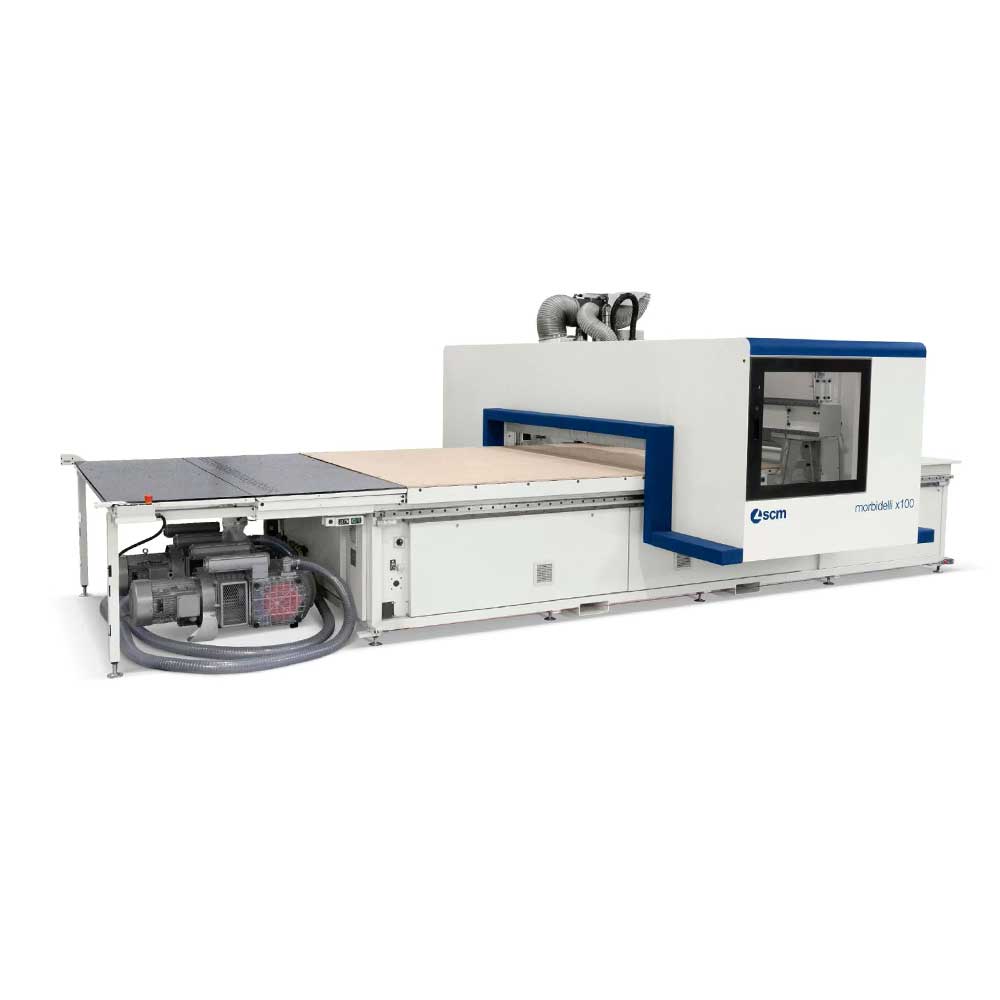

SCM Morbidelli X100

Description

The SCM Morbidelli X100 is designed for flexible performance and productivity to meet the demands of a market that is increasingly oriented toward batch 1 production. Its Vacuum Management system allows precise control of suction zones during processing, while X-PODs enable machining without removing the spoilboard and allow accurate referencing with a cross-laser system. The Smart Cut algorithm optimizes cutting sequences without affecting nesting efficiency, and its highly modular design lets users configure the machine to suit diverse production needs, regardless of material flow.

Working areas:
X-Y axes dimensions mm 2556x1296
3756x1596
3756x1896
3156x2216
4356x2216
Axes:
Vectorial speed X-Y axes "PRO-SPACE" version m/min 70
Z-axis panel passage mm 150
Routing unit:
3-4 axis motor power (up to) kW 15
Rotation speed (up to) rpm 24000
Available tools on tool changer (up to) positions 31
Drilling unit:
Independent vertical spindles (up to) n. 16
Independent horizontal spindles (up to) n. 8
Rotation speed (up to) rpm 8000
Integrated blades (up to) n. 2
Integrated blade in X, diameter mm 125
