The best solution for batch-1 processes.

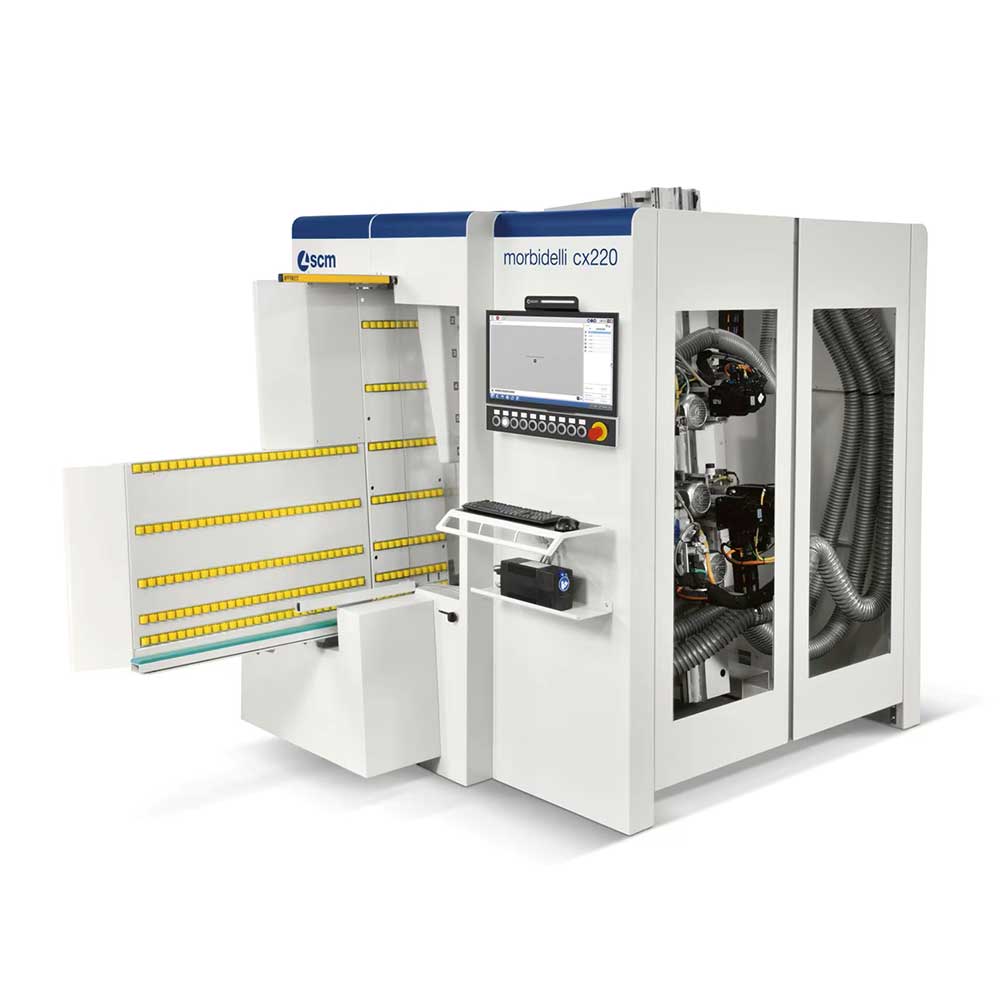

Compact and smart CNC drilling centres, the Morbidelli CX210 and CX220 are perfect for grant drilling on 5 sides of the panel, as well as grooving and routing operations. No manual inverventionis required on the machine between two operations, allowing uninterrupted machining cycle. Also available with automated panel return conveyor for a continuous cycle production.
cx210 cx220
Axes
Panel length (max.) mm 3050
Panel width (max.) mm 1300
Panel thickness (max.) mm 95
Panel weight (max.) kg 70
X-Y-Z axes speed (max.) m/min 70 - 40 - 30
F31LTC drilling head
Vertical spindles no. 21
Horizonal spindles in X - Y directions no. 6 - 4
Spindles rotation speed rpm up to 8000 with optional inverter
Integrated blade in X axis Ø mm
rpm 125
up to 9700 with optional inverter
Motor power kW (Hp) 2,2 (3)
F21L drilling head
Vertical spindles no. - 13
Horizonal spindles in X - Y directions no. - 6 - 2
Spindles rotation speed rpm - up to 8000
with opt. inverter
Integrated blade in X axis Ø mm
rpm - 125
up to 8000
with opt. inverter
Motor power kW (Hp) - 2,2 (3)
0-90° saw-blade/clamex unit
Diameter mm 125
Rotation speed rpm 5500
Electrospindle
Motor power (max.) kW 7,5
Rotation speed rpm up to 24000
Dowel insertion unit
Supply system water/vinyl glue
Available tools on tool changer no. 6"
