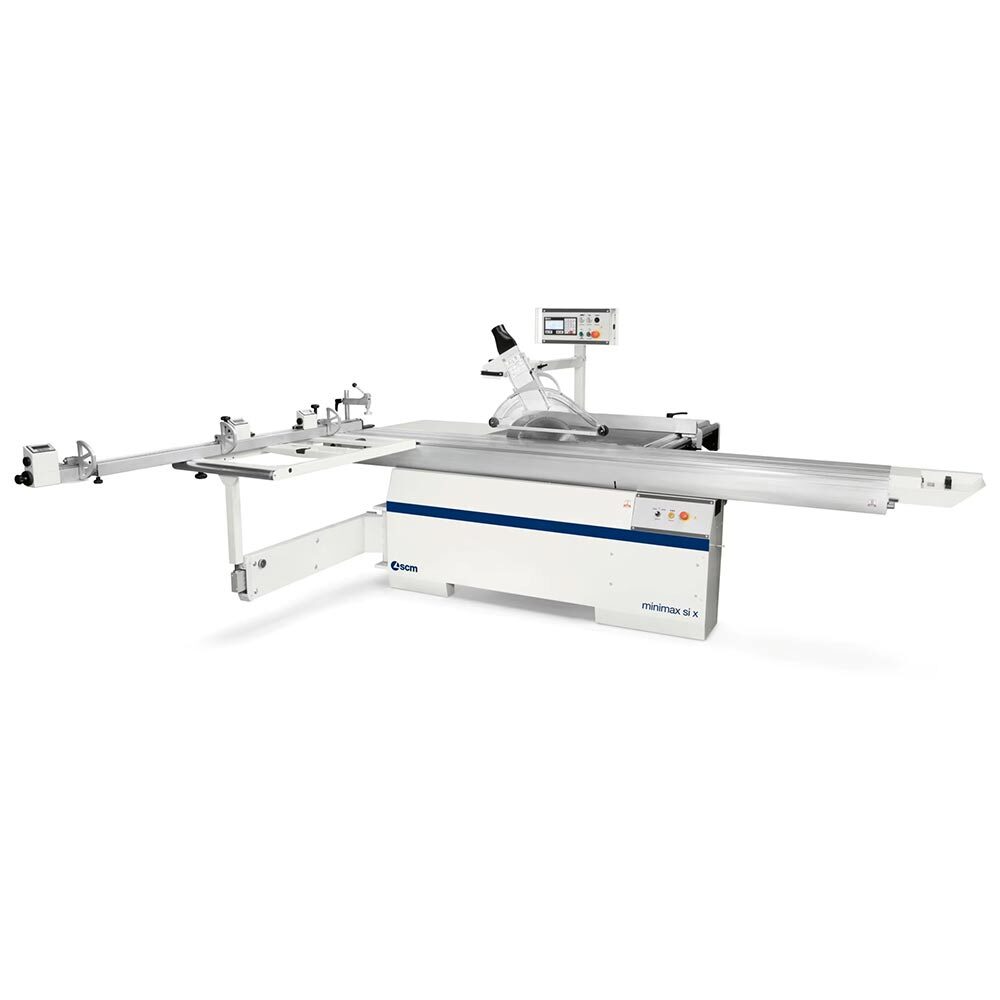

SCM Minimax SI X

Ensures perfect cutting of veneer panels and thick solid wood material.

SKU: SCM-MMSIX Category: Brand:

Description

The SCM Minimax SI X delivers perfect, effortless cutting of veneered panels and thick solid wood, providing exceptional accuracy both at 90° and in tilted cuts up to ±46°. Its new, highly reliable sliding carriage—guaranteed for 10 years—is engineered for maximum cut quality, improved performance, and enhanced customization, with the ability to lock in any position for greater ergonomics and ease of use. The machine’s solid and sturdy structure ensures consistently accurate cuts, and an optional scoring unit can be added for flawless results on veneered materials. The large squaring frame simplifies panel loading, while its mobile crossbeams give optimal support even for smaller workpieces, with additional optional devices available to match specific production needs. The advanced “READY 3” electronic control system provides automatic positioning of the parallel fence with programmed or manual movement, and the “READY 3 UP” version adds a mobile control panel for even greater convenience and versatility, making the Minimax SI X a highly configurable, high-precision sliding table saw for demanding woodworkers.

Max. sawblade diameter with scoring blade (option) installed mm 400
Max. sawblade projection from table at 90°/+45°/-45° mm 136/97/60
Cutting width on parallel fence mm 1270
Squaring stroke mm 2250÷3800
Three-phase motors starting from kW/Hz 7 (8) / 50 (60)
