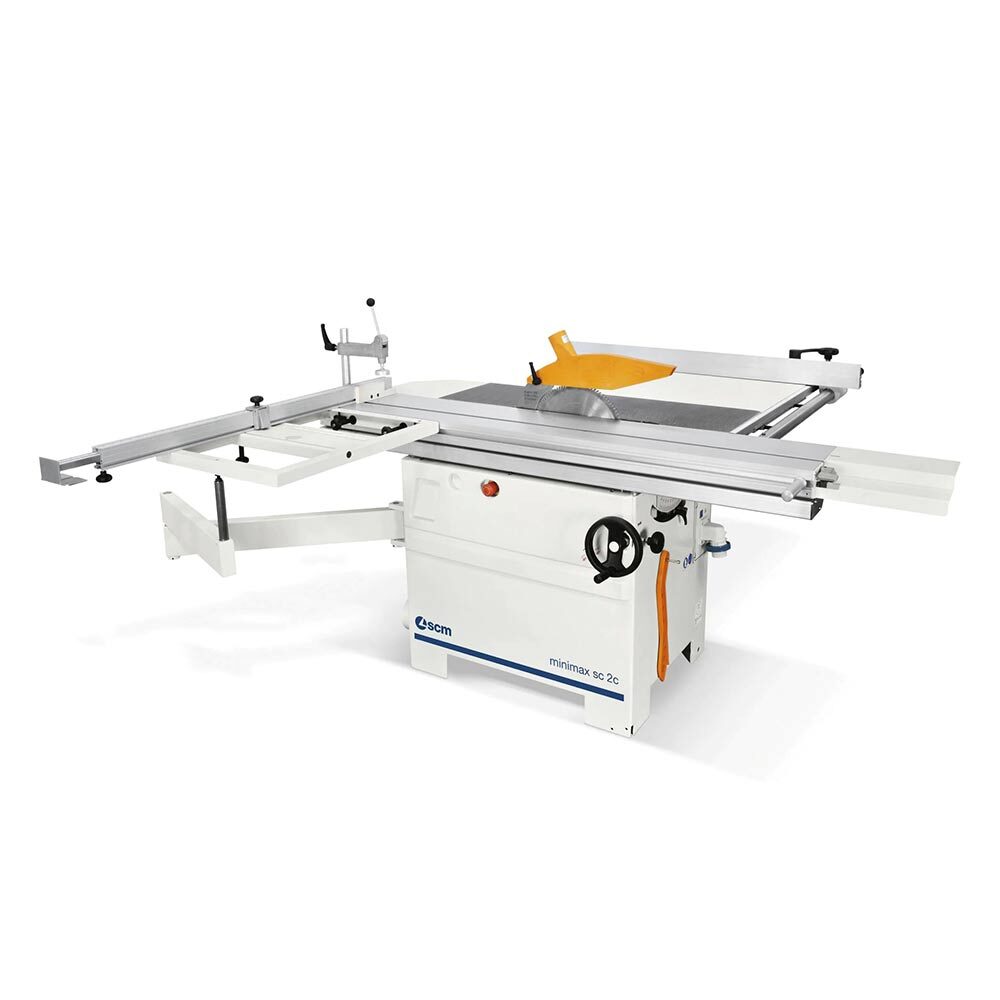

SCM Minimax SC 2C

The accurate, cost-effectice and compact circular saw with tilting blade for small joineries.

SKU: SCM-MMSC2C Category: Brand:

Description

The SCM Minimax SC 2C sliding table saw delivers outstanding performance with its new saw unit, capable of cutting very thick solid wood or veneered panels using a 315 mm blade that provides an impressive 100 mm cutting height even with the scoring blade installed. The optional scoring unit can be easily adjusted from outside the machine, adding convenience and precision. Large workpieces are handled with confidence thanks to the wide sliding table and standard large squaring frame fence, ensuring exceptional stability, smooth and silent movement, a self-cleaning dustproof system, and long-lasting accuracy without the need for adjustment. The extruded anodized aluminum table features a closed honeycomb structure and runs on an exclusive slideway system with calibrated, hardened F550 SX steel guides, giving the Minimax SC 2C its renowned ease of use, precision, and reliability.

Max. sawblade diameter mm 315
Sawblade arbor size mm 30
Max. sawblade projection from table at 90°/45° mm 100/78
Cutting width on parallel fence (Rip capacity) mm 900
Max. squaring stroke of sliding table saw mm 1660
Single-phase motor Hp 3.4
