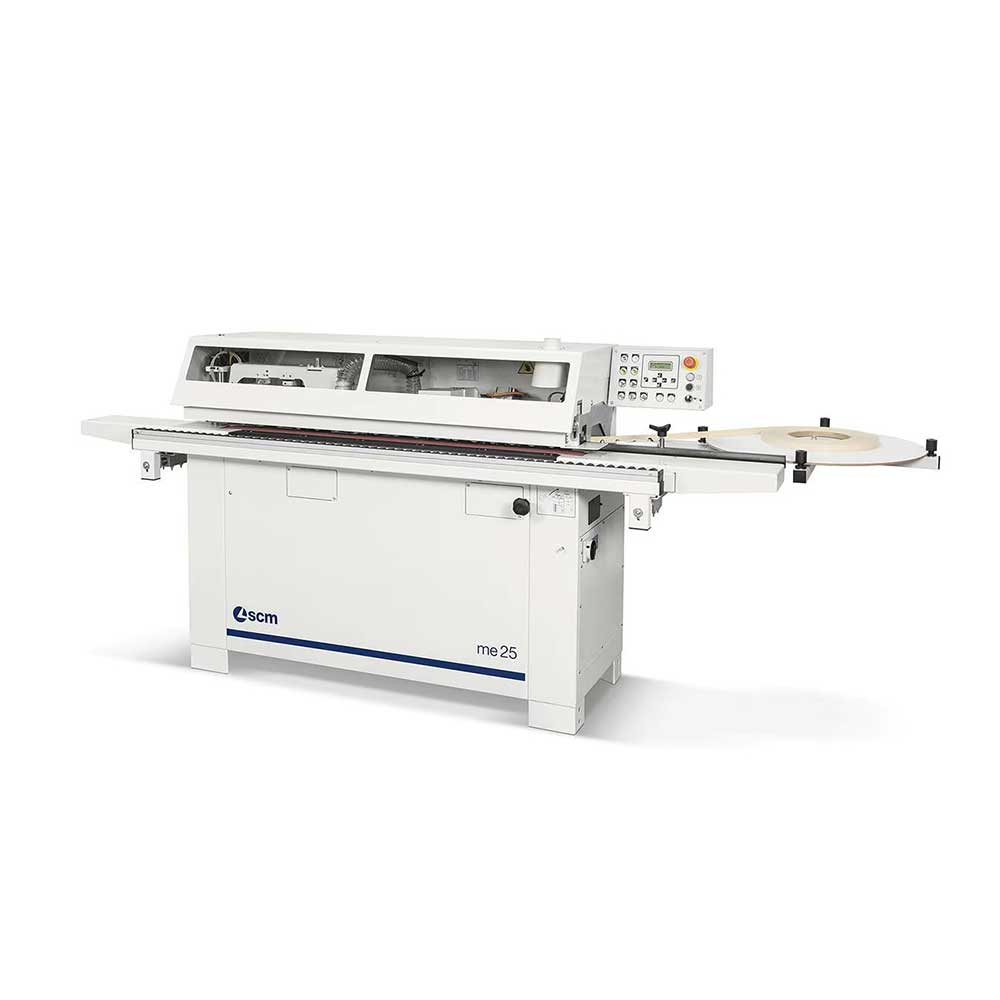

SCM Me 25

The automatic edge bander with flexibility and melaminic edges.

SKU: SCM-ME25 Category: Brand:

Description

The SCM ME 25 Edgebander is an automatic, high-precision machine designed for professional craftsmen and joineries, capable of edge banding melamine, PVC, and ABS up to 3 mm, as well as wooden strips up to 5 mm. Its innovative panel conveying track ensures smooth, linear panel movement for a flawless finish, while an independent asynchronous cutter delivers absolute precision when trimming. The front-mounted control panel allows simple, error-free operation, guiding the operator through main functions and maintenance via the PLC system. For PVC and ABS edges, radius knives guarantee a high-quality finish, completely removing any marks from the rimming tools, with front and vertical copiers and a user-friendly device for excluding unused units. Combining flexibility, ease of use, and professional-grade results, the ME 25 offers superior edge banding performance for a wide range of materials and applications.

Work table dimensions mm 2600 x 530
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3
Max. thickness of edges in strips mm 5
Min. ÷ max. panel height mm 12 ÷ 50
Min. panel length/width mm 190/65
Feed speed m/min 7
