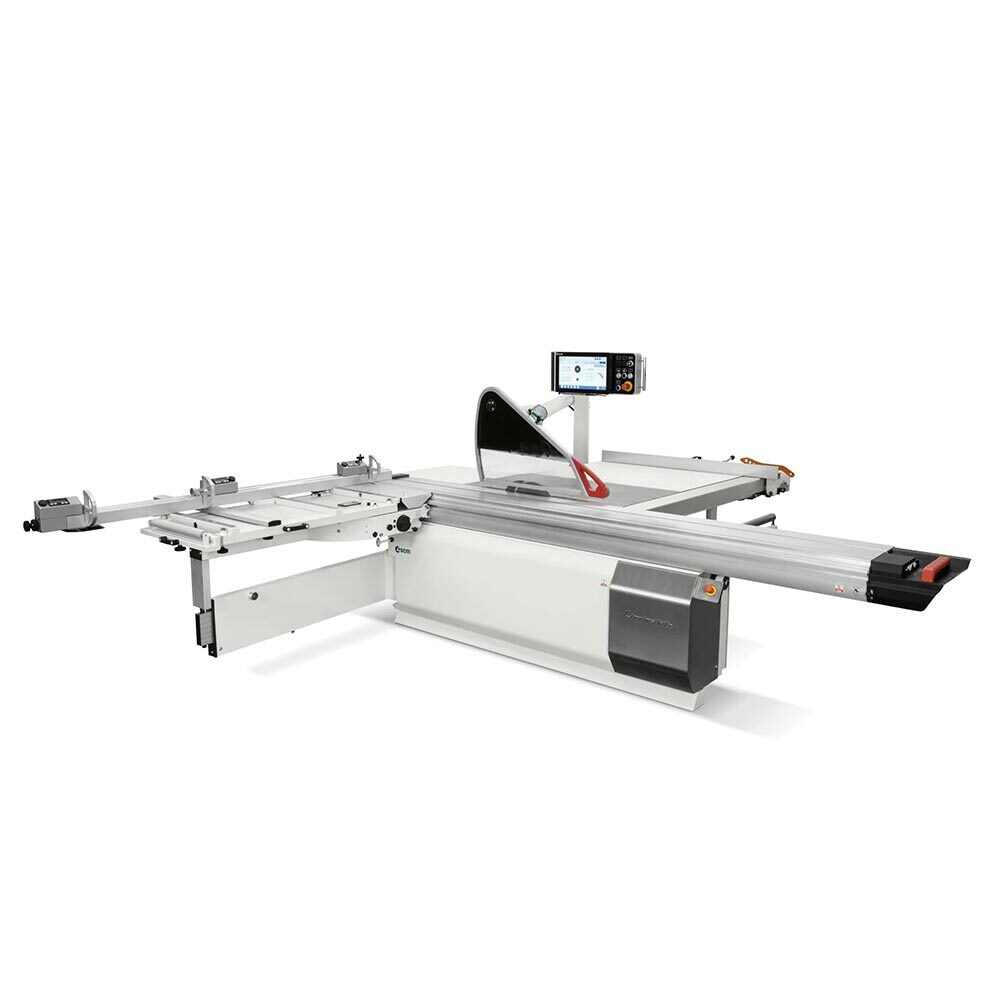

SCM L’invincibile SI X

A customized solution designed by experience, technical research, and Italian creativity.

SKU: SCM-LSIX Category: Brand:

Description

The SCM L’invincibile SI X sliding table saw combines advanced technology and maximum performance for precise woodworking. It features a double blade tilting system, allowing the use of a 550 mm saw blade for both 90° and ±46° inclined cuts, delivering optimal results on veneered panels and solid wood components. The sliding carriage, built with SCM’s exclusive arch-ground steel slideways, guarantees maximum cut quality over time and can bear loads four times higher without requiring adjustment. The “eye‑S” mobile console provides intuitive machine control via a 15” color touch-screen display and Maestro active user interface, while the telescopic swinging arm and large extrusion squaring frame, sliding on prismatic linear guides with recirculating ball bearings, ensure smooth panel support and effortless movement. Connectivity features include machine network integration, sharing of work programs and tool databases, activity monitoring, SCM Thundercut app compatibility, and tele-service with self-diagnosis.

Max. saw blade diameter with mounted scorer mm 550
Maximum saw blade projection from table to 90°/+46°/-46° mm 200/130/105
Saw blade rotation speed rpm 3000 ÷ 5000
Cutting width on rip fence (Rip capacity) mm 1500
Max. squaring stroke of sliding table saw mm 2200 ÷ 3800
Three-phase motor kW/Hz 9 (11) / 50 (60)
