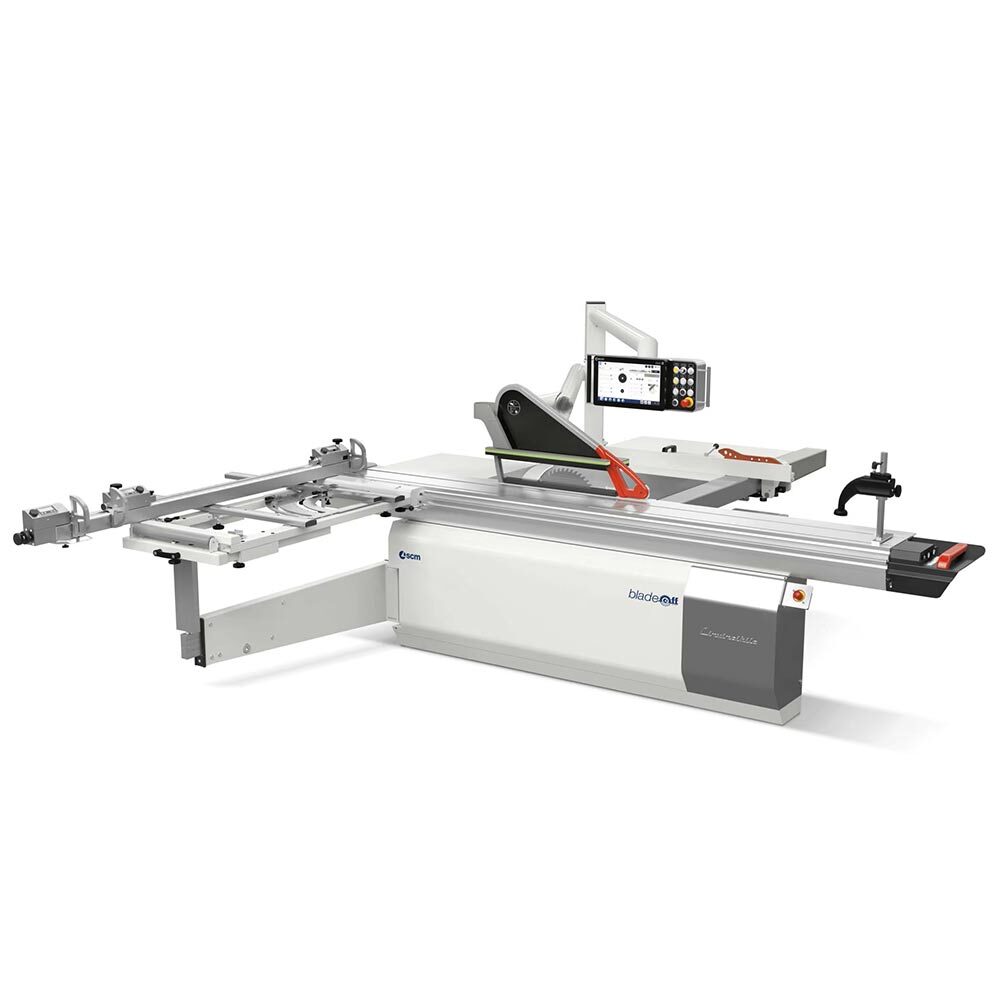

SCM L’invincibile SI 3 Blade Off

Description

The SCM L’invincibile SI 3 Blade Off is equipped with an advanced safety system that prevents any accidental contact with the blade using intelligent sensors that detect the human body and activate the mechanism before the operator approaches the danger zone. The system rapidly and reliably deactivates the blade in a few milliseconds, even at feed speeds of up to 2 m/s, and can be reset without affecting machine accuracy or performance. Its smart detection works regardless of hand position or protective gloves, providing total safety while maintaining freedom of movement and ergonomic design. Protection extends to the three areas surrounding the blade—workpiece entry and side zones—ensuring expanded coverage, while the repeatable and reliable system preserves the machine’s quality and stability over time.

Squaring capacity with 2200 mm carriage mm 2200 x 3200
Squaring capacity with 3200 mm carriage mm 3200 x 3200
Squaring capacity with 3800 mm carriage mm 3800 x 3200
Cutting width on the rip fence mm 1500
Max. cutting height at 90° mm 120
Max. cutting height at 45° mm 89
Main blade rotating speed (with standard inverter) rpm 3000 ÷ 5000
Scoring blade rotating speed rpm 8500
Main blade motor power kW/Hz 9(11) / 50(60)
Scoring blade motor power kW 1,3
