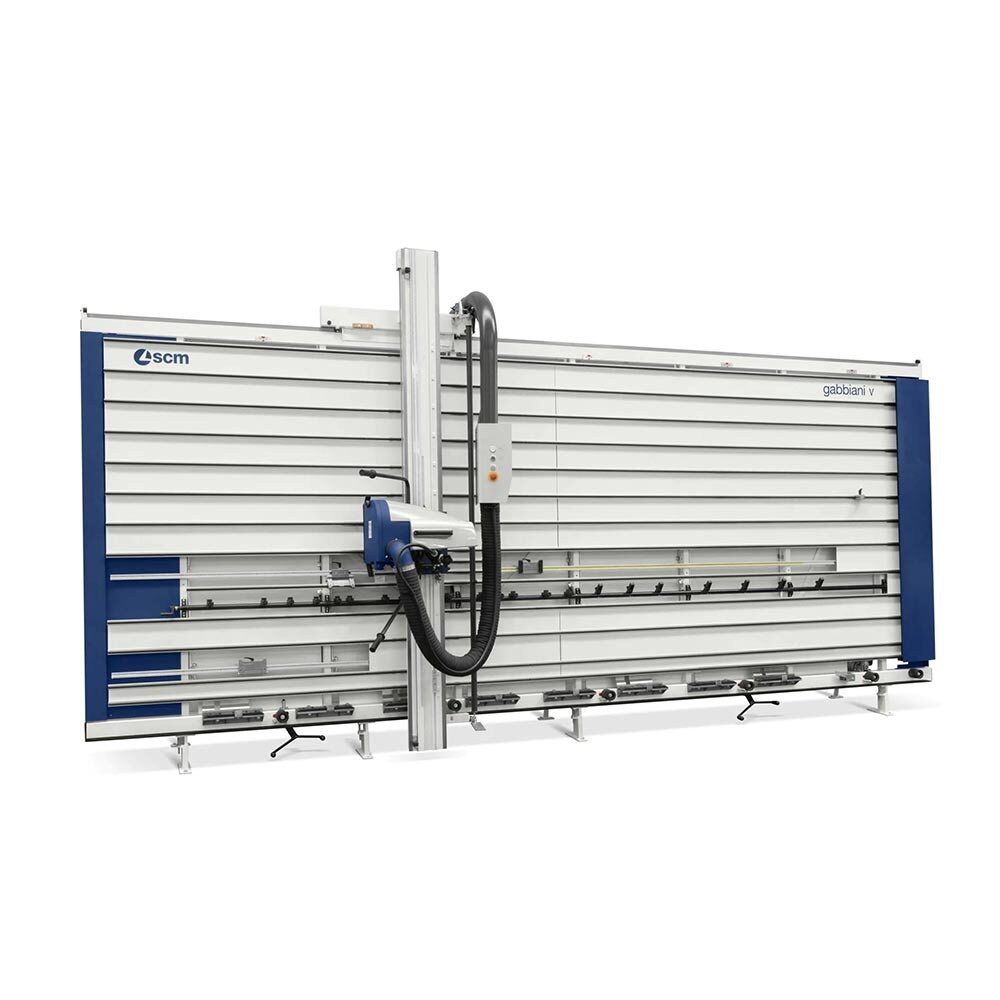

SCM Gabbiani V

Description

The SCM Gabbiani V is a functional, compact vertical panel saw designed to perform precise horizontal and vertical cuts across a wide variety of wood materials, using a single main blade with the option to integrate Widia knives for enhanced cutting versatility. Its electro-welded frame ensures exceptional strength and stability, delivering maximum resistance under demanding workloads. Combining power, durability, and reliability, the Gabbiani V offers a safe, space-efficient solution that meets a broad range of production needs—making it an outstanding choice for woodworking operations seeking high performance at an unbeatable cost.

Model V25 V32 V43 V53
Max. length of horizontal cut mm 2599 3200 4200 5300
Max. length of vertical cut mm 2200 3200 4200 5200
Max. height of vertical cut mm 1600 1900 2200 2200
Max. height of horizontal cut mm 1400 1700 2080 2100
Max. cutting thickness mm 60 60 60 80
Motor power kW 3,7 3,7 3,7 5,6
Blade diameter mm 250 250 250 300
Rotating speed rpm 5300 5300 5300 5000
Mechanical positioners for 4 4 4 4
horizontal cuts
Stops for vertical cuts 1 1 1 2

SCM-Gabbiani-Vertical-Panel-Saw-range.pdf
