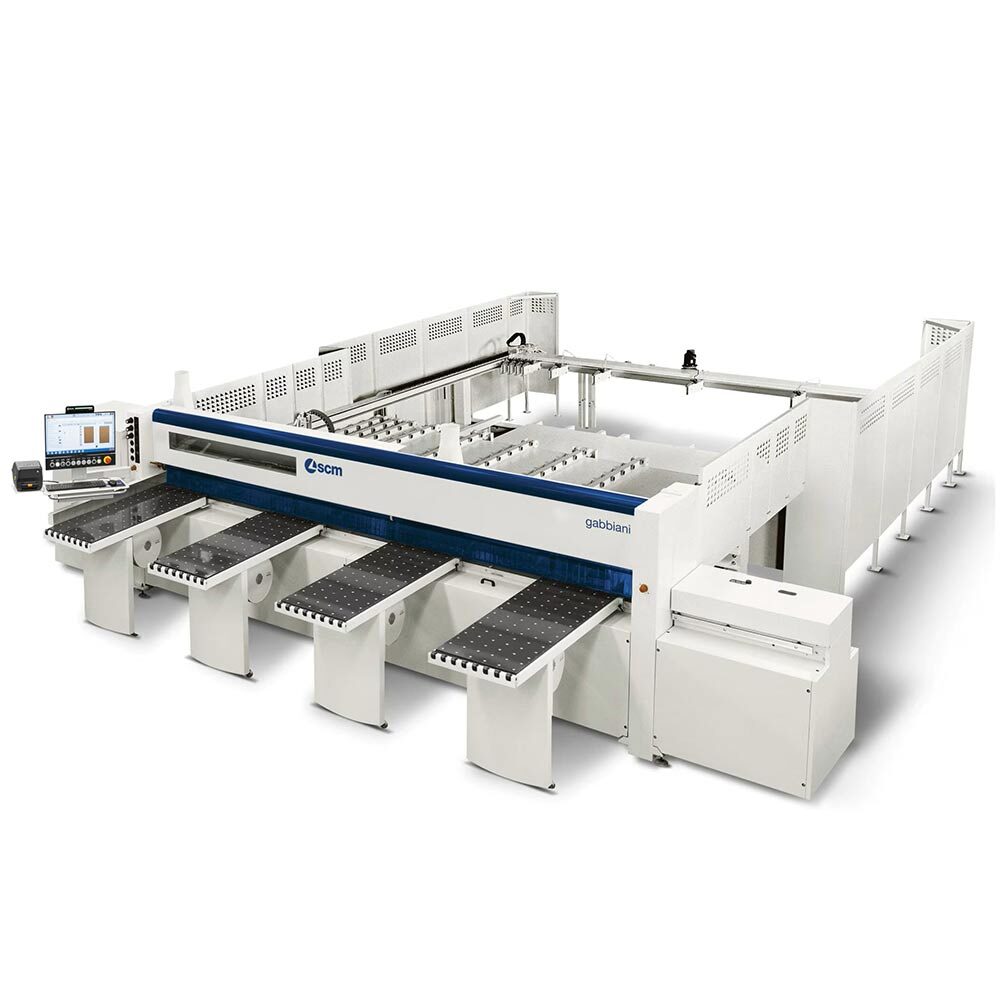

SCM Gabbiani ST

Description

The SCM Gabbiani ST is a single-blade beam saw with PC/PLC control, designed to cut solid wood panels, panel stacks, and derivatives such as chipboard, MDF, multilayer, plywood, and fiber panels. Its selectable air-blowing table, with independently controlled sections, ensures optimal panel sliding and prevents accidental falling of temporarily stored cut panels. The SAW-SET system allows fast and precise electronic tool adjustments for intuitive use and increased productivity. A robust lifting platform running on four large trapezoidal screws guarantees parallel lifting of panel stacks, maximizing load capacity for any material or format and minimizing downtime. The machine’s Maestro Active Cut software provides an intuitive, customizable interface for programming all panel types, managing material and off-cut stocks, and efficiently handling end products, off-cuts, and scraps.

Cutting length mm 3200/3800/4500
Cutting depth on platform mm 1850/2200
Max. height of panel stack on platform with support beams mm 600
Blade projection mm 115
Saw carriage variable speed m/min (opt.) 0 - 135 (0 - 150)
Pusher variable speed m/min (opt.) 0 - 70 (0 - 90)
Main blade motor S6 - 40% kW (opt.) 9 (11 - 15 - 18)
Scoring unit blade motor 50 Hz kW 1,8
Main blade / scorer speed 50 Hz rpm 3900/6300
Main blade / scorer blade diameter mm 400/160
Number of clamps (3 of which with frontal side aligner) std 6
