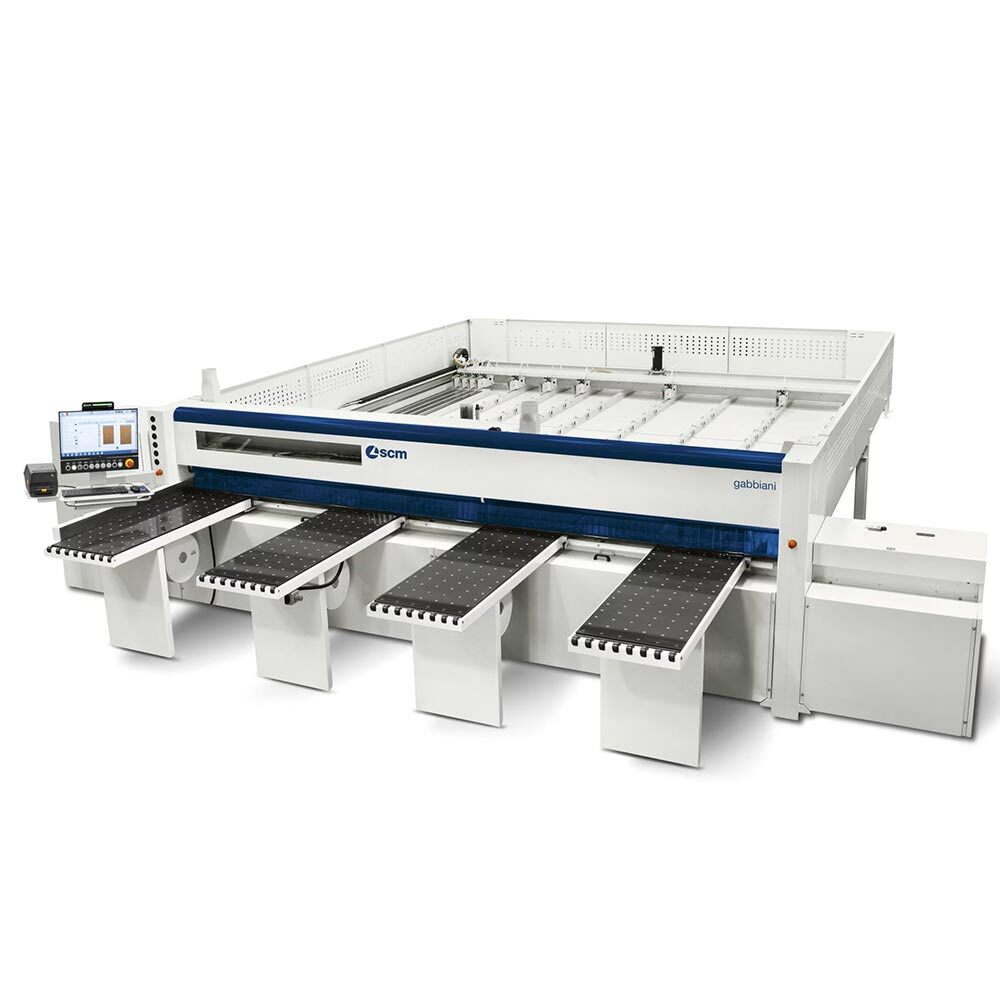

SCM Gabbiani S

Description

The SCM Gabbiani S is a single-blade beam saw with PC/PLC control, designed for cutting solid wood panels, panel stacks, and derivatives such as chipboard, MDF, multilayer, plywood, and fiber panels. Its selectable air-blowing table, with independently controlled sections, ensures optimal panel sliding and prevents accidental falling of temporarily stored cut panels. The FLEXCUT unit boosts productivity by up to 30% and saves up to 20% of space by enabling simultaneous rip and cross cuts, while the SAW-SET system allows fast, precise electronic tool adjustments for intuitive use and improved workflow. The machine’s Maestro Active Cut software provides a powerful and customizable interface for programming all panel types, managing material and off-cut stocks, and handling end products, off-cuts, and scraps efficiently, making it an ideal solution for integration with flexstore storage systems.

Model S95 S115
Cutting length mm 3200/3800/4500 3200/3800/4500
Blade projection mm 95 115
Saw carriage variable speed m/min (opt.) 6 - 60 (0-135/0-150) 6 - 60 (0-135/0-150)
Pusher variable speed m/min (opt.) 0 - 60 (0-70/0-120) 0 - 60 (0-70/0-120)
Main blade S6 - 40% kW (opt.) 7,5 (9) (11) (15) (18) 9 (11) (15) (18)
Scoring unit blade motor 50 Hz kW 1,8 1,8
Main blade / scorer speed 50Hz rpm 3900/6300 3900/6300
Main blade / scorer blade diameter mm 380/160 400/160
options for advanced cutting avaliable
HI-TRONIC Vertical stroke device avaliable
Number of clamps std 5 6
