Description

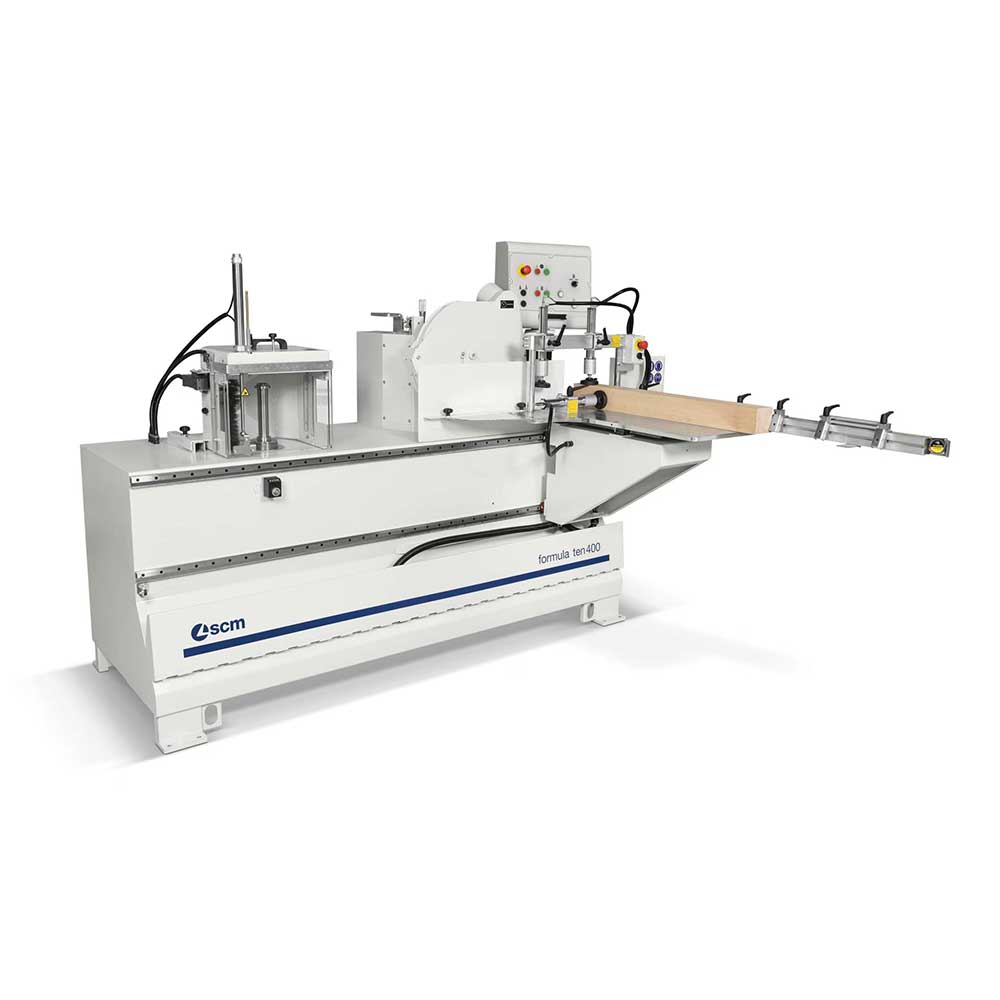

The SCM Formula Ten 400 / Ten400E is an automatic tenoning machine designed for high-speed, precise machining, capable of handling even large workpieces. Its tenoning unit features two vertical and one horizontal pressure cylinder to ensure secure clamping, while the tiltable worktable fence (±45°) and 5-position revolver with 4 mechanical stops guarantee accurate positioning without the need for off-cuts. Carriage movement on ball bushing linear guides provides smooth, efficient operation, and the Ten400E version includes a spindle moulder unit with an HSK 63B rapid tool-change electrospindle, delivering maximum performance as standard.
Model ten 400 ten 400e
Spindle moulder unit:
Max. tool diameter mm 360 360
Spindle diameter mm 40 or 50 40 or 50
Tool rotating speed rpm 3600 fixed up to 3600
Tool change system manual ring HSK 63B
Motor power kW 7,5 7,5
Circular saw unit:
Max. blade diameter mm 400 400
Max. cutting height mm 120 120
Blade rotating speed rpm 2800 2800
Number of stops on revolver n. 4 4
Selfbraking motor power kW 3 3
Work-piece support table
Worktable stroke towards the tool mm 105 105
Worktable width mm 400 400
Vertical pressers for pneumatic clamping n. 2 2
Horizontal presser for pneumatic clamping n. 1 1
Number of stops on revolver n. 5 5
