Description

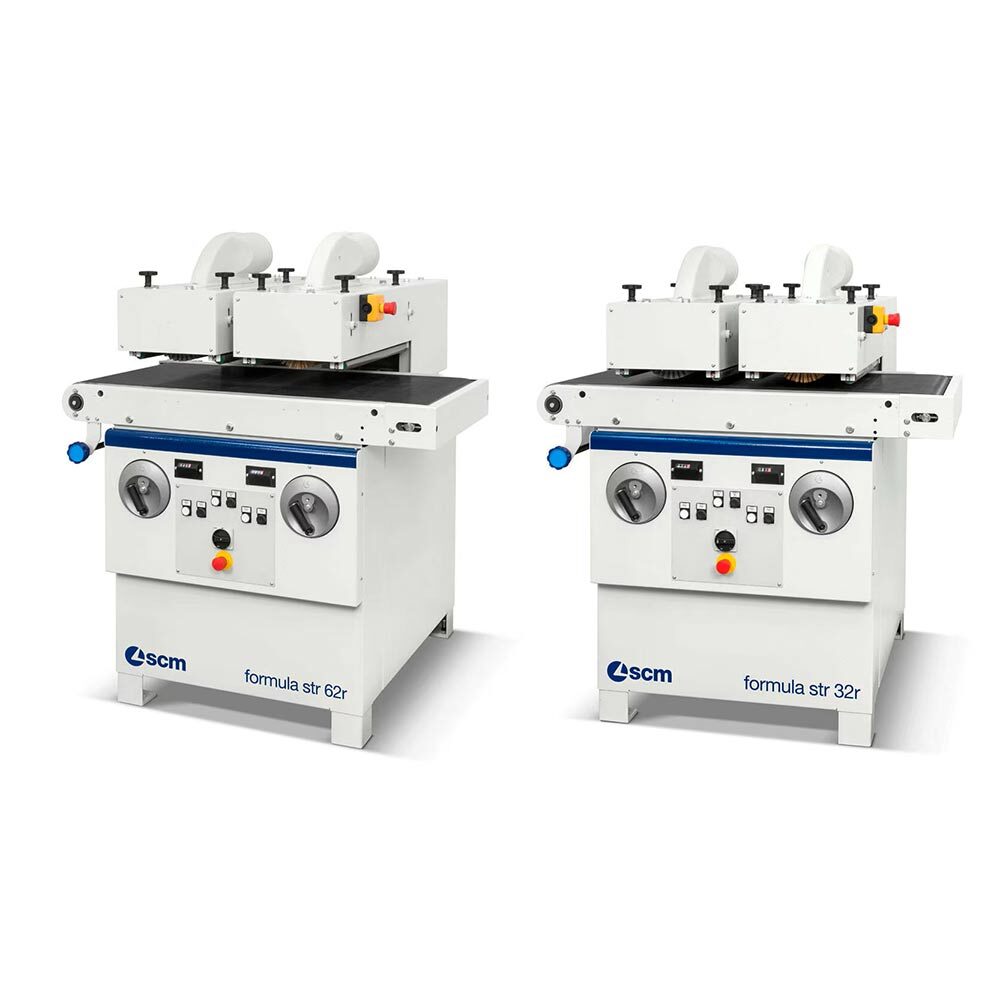

SCM Formula STR32 and STR62 rustication and brushing machines are versatile, high-performance solutions designed to enhance the natural grain of hardwood or provide smooth, uniform sanding on solid wood, veneered panels, and MDF components. Available in “R” versions equipped with steel and Tynex® brushes for deep rustication, or in “I” versions featuring abrasive insert brushes with inverter-controlled motors for precise surface sanding, they adapt effortlessly to a wide range of finishing needs. Their double machining unit enables the desired finish to be achieved in a single pass, supported by large-diameter extraction hoods that ensure excellent dust removal and a clean working environment. A rubber belt with vertical grooves guarantees superior workpiece adherence, while handwheel-controlled lifting with numerical readout makes machine setup simple, accurate, and user-friendly.

Model: str 32r str 32l str 62r str 62l
Number of machining units 2 2 2 2
Working width mm 300 300 600 600
Max. working height mm 300 300 300 300
Machining unit motor power @ 50 Hz kW 3 3 4 4
Feed speed motor power @ 50 Hz kW 0,22 0,22 0,37 0,37
Exhaust outlets diameter mm 2 x 150 2 x 150 2 x 150 2 x 150
Brushes speed rpm 1500 100 ÷ 1500 1500 100 ÷ 1500
Feed speed m/min 3 ÷ 20 3 ÷ 20 3 ÷ 20 3 ÷ 20
Brush diameter mm 190 / 190 230 / 230 190 / 190 230 / 230
Net weigth kg 440 440 750 750
Dimensions (width x depth x height) mm 1300 x 900 x 1300 1300 x 900 x 1300 1300 x 1200 x 1550 1300 x 1200 x 1550
