The double operating unit for your desired finish in a single passage.
The standard formula rustication units/brushing machines are the ideal solution for rustication processing that highlight the hardwood vein or to sand the surfaces of cupboard doors/details in solid wood and veneered or MDF panels. They are available in “r” versions with steel and Tynex® brushes, dedicated to the rustication of solid wood or in “I” versions standard fitted with abrasive insert brushes and inverter controlled motors for surface sanding.

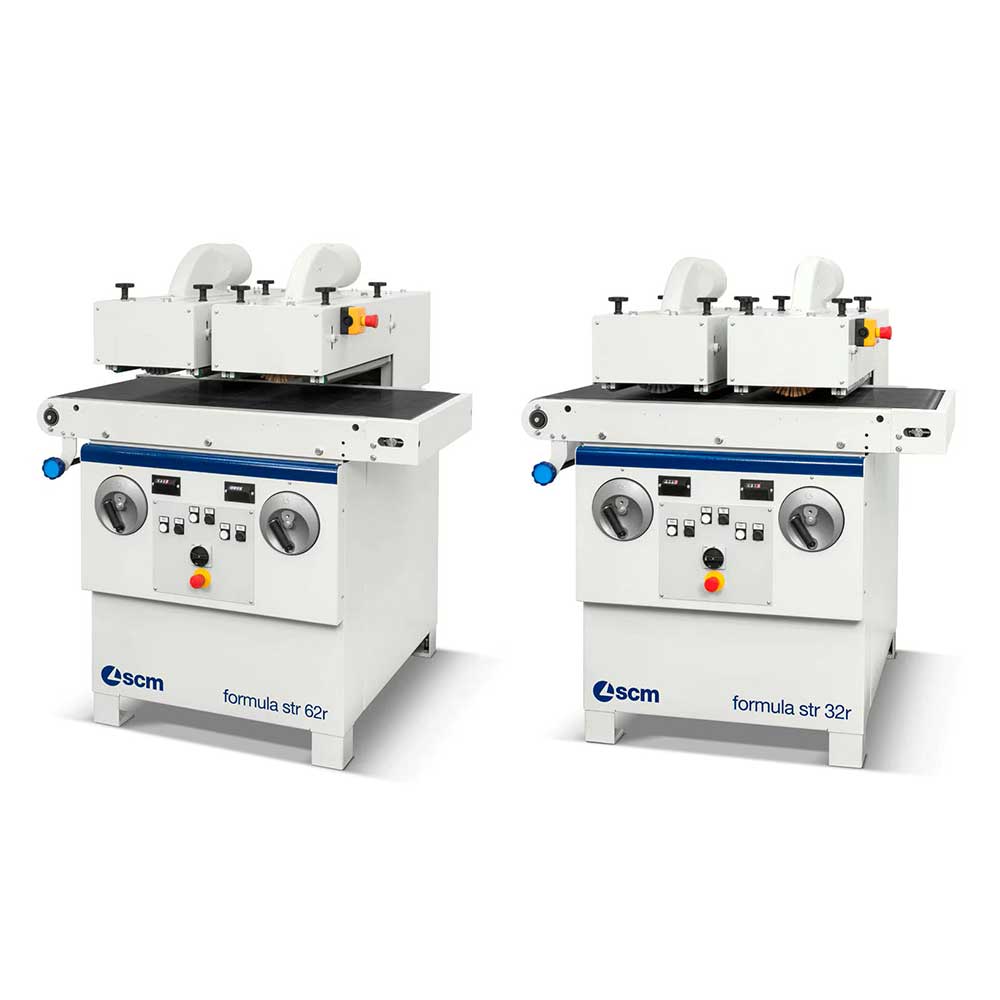

formula str 32r str 32l str 62r str 62l
Number of machining units 2 2 2 2
Working width mm 300 300 600 600
Max. working height mm 300 300 300 300
Machining unit motor power @ 50 Hz kW 3 3 4 4
Feed speed motor power @ 50 Hz kW 0,22 0,22 0,37 0,37
Exhaust outlets diameter mm 2 x 150 2 x 150 2 x 150 2 x 150
Brushes speed rpm 1500 100 ÷ 1500 1500 100 ÷ 1500
Feed speed m/min 3 ÷ 20 3 ÷ 20 3 ÷ 20 3 ÷ 20
Brush diameter mm 190 / 190 230 / 230 190 / 190 230 / 230
Net weight kg 440 440 750 750 Dimensions (width x depth x height) mm 1300 x 900 x 1300 1300 x 900 x 1300 1300 x 1200 x 1550 1300 x 1200 x 1550
