Description

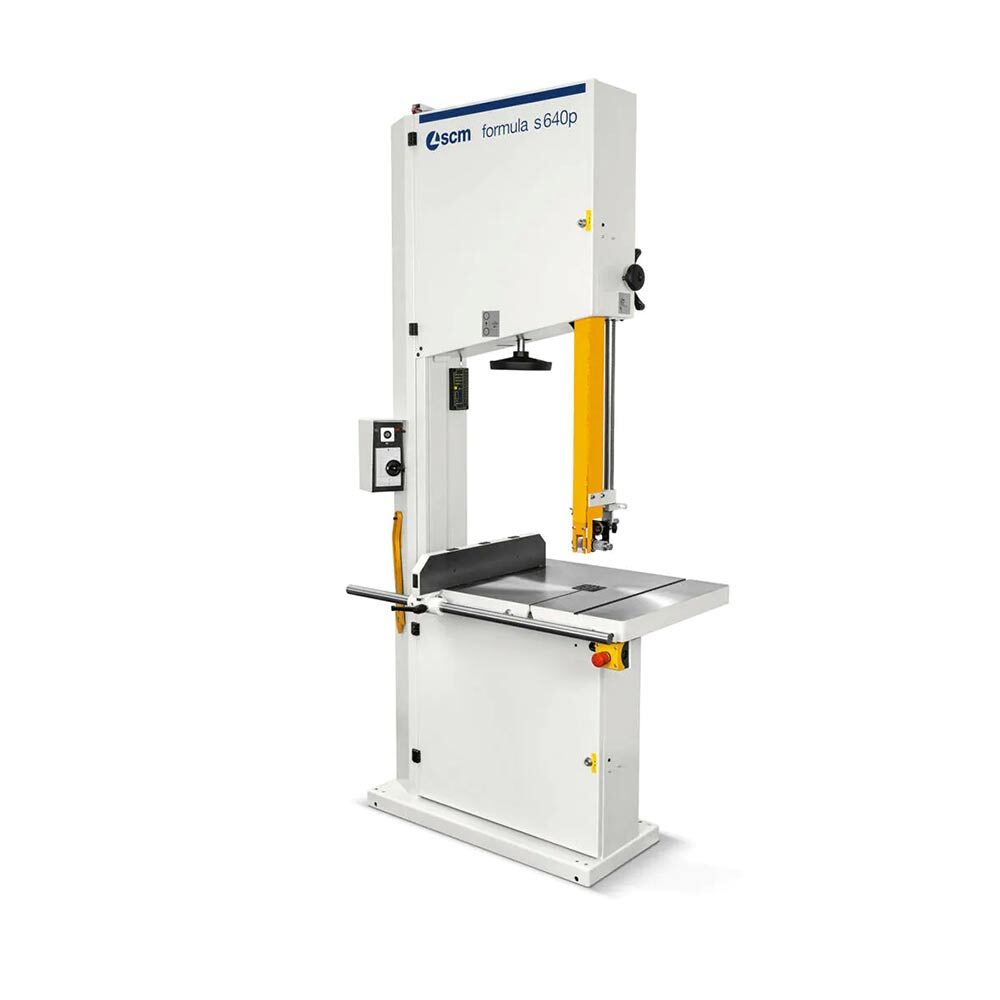

The SCM Formula S440P–S940P band saw series is built for solidity, precision, and safety, featuring large cast-iron saw wheels and worktables running on sealed-for-life ball bearings for long-lasting sturdiness. Total safety is ensured through telescopic blade protections with rackwork, while high-precision top and bottom blade guides deliver perfect cut results. These versatile machines are practical for a wide range of applications, allowing operators to perform both straight and angled cuts on wood, plastic, and aluminum with consistent, high-quality finishes.
Model S440P S540P S640P S740P S840P S940P
Worktable dimensions mm 420x578 520x720 600x885 710x1000 800x1160 800x1250
Cast iron saw whells diameter mm 440 540 640 740 840 940
Saw wheels width mm 33 38 38 40 45 54
Max. cutting height mm 440 500 600 450 540 560
Max. cutting width mm 425 520 620 720 820 910
Worktable tilting (CE) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°)
Max. blade length mm 3950 4560 5220 5420 6110 6710
Standard three-phase motor kW 2,2 2,2 3 4 5,5 7,5
S1 400V 50Hz
Standard three-phase motor kW 3,6 3,6 3,6 5 6,7 6,7
S1 220V 60 Hz
Standard single-phase motor kW 3,6 3,6 3,6
S1 220V 60Hz
Exhaust outlets diameter mm N.2x120 N.2x120 N.2x120 N.2x120 N.2x140 N.2x140
