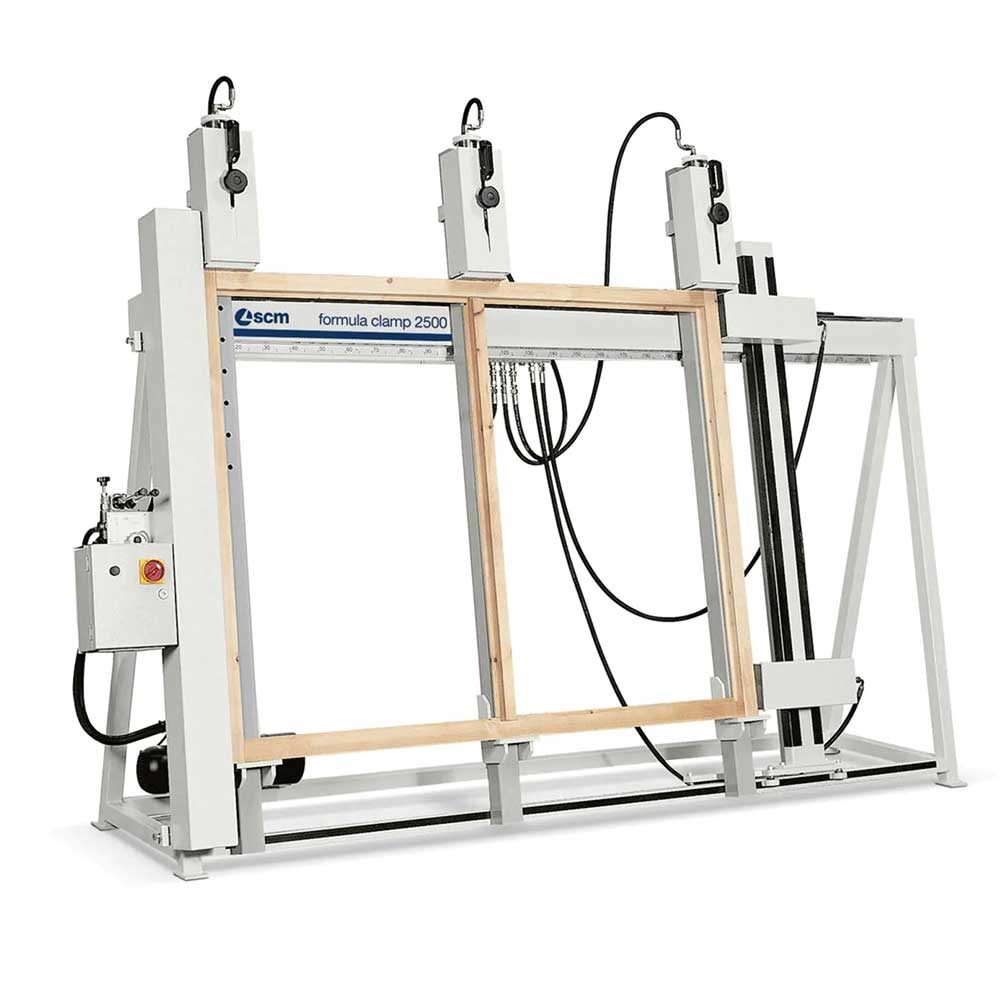

SCM Formula Clamp 2500

The ideal solution for the gluing and assembly of many typical joinery workshop products

SKU: SCM-FC2500 Category: Brand:

Description

The SCM Formula Clamp 2500 is robustly designed for precision and reliability in woodworking assembly. It features a simple and rapid vertical beam positioning system that allows quick adjustment of the hydraulic cylinders, ensuring ease of setup and operation. The lower cast iron supports provide exceptional sturdiness and stability, enhancing the machine’s durability and performance over time. Its user-friendly control panel, equipped with practical levers, a pressure-reading manometer, and a locking valve, allows precise management and maintenance of hydraulic pressure, keeping every stage of the clamping process under complete control.

formula clamp 2500
Working dimensions mm 2500 x 1800
Vertical hydraulic cylinders stroke mm 150
Thrust of each vertical hydraulic cylinders kg 1270
Horizontal hydraulic cylinders stroke mm 120
Thrust of each horizontal hydraulic cylinder kg 770
