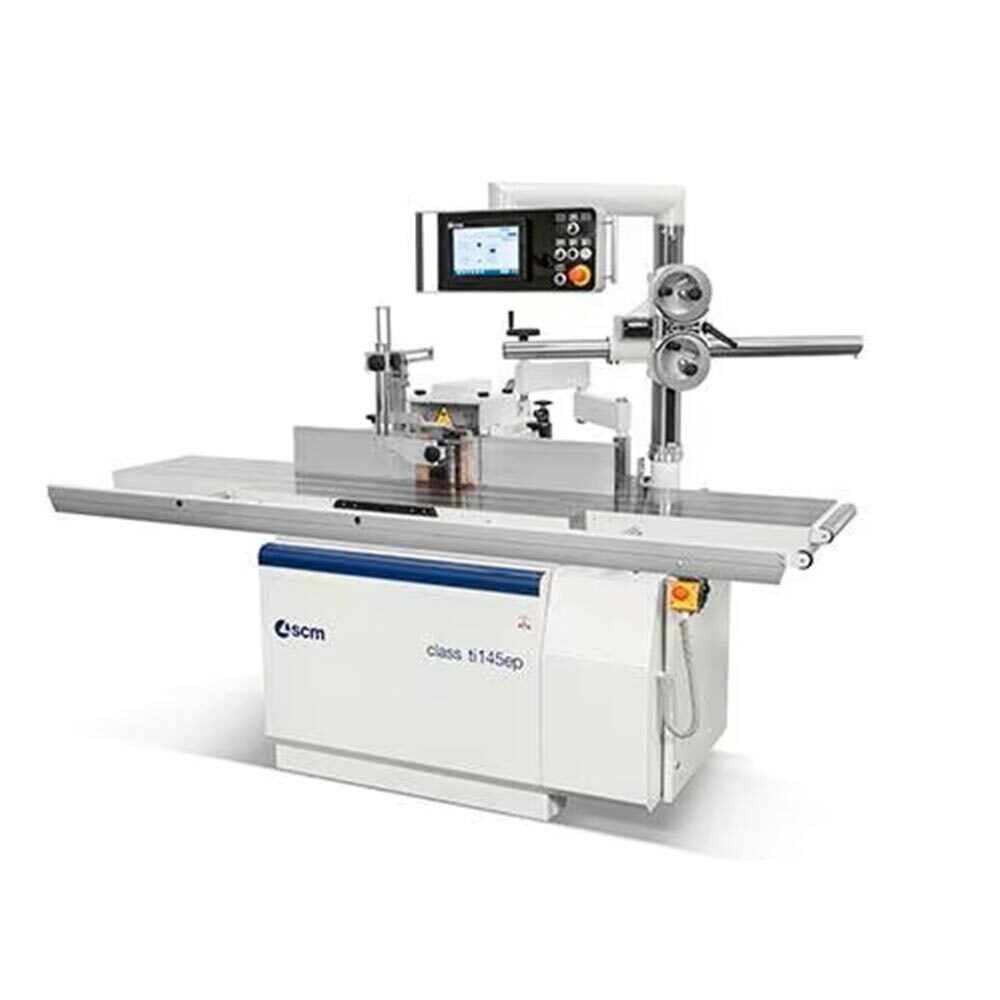

SCM Class TI 145EP

Description

The SCM Class TI 145EP shaper delivers exceptional versatility, precision, and efficiency, equipped with advanced technologies designed to reduce setup times while maximizing safety and ease of use. Its innovative eye-S console elevates machine control with 4.0-ready connectivity, shared programs and tool databases, real-time activity monitoring, and built-in diagnostics with remote support. Productivity is further enhanced by the “FAST” sectional worktable, which provides optimal support close to the tool and allows adjustments with tooling already mounted, and the “FLEX-ONE” fence, which repositions accurately in a single movement and eliminates test runs thanks to automatic positioning and a digital depth indicator. Tool changes are faster and safer than ever with the “T-SET” rapid tool-locking system, enabling effortless locking and unlocking using a compressed-air gun instead of traditional keys. Combining a sleek 10″ touch-screen interface and the Maestro Active software, the TI 145EP offers intuitive, high-precision control for exceptional performance in demanding professional woodworking environments.

Spindle height diam. 30-35 (40-50) mm 140 (160)
Spindle speed (at 50 Hz) rpm 3000/4500/6000/7000/10000
Max. diameter of the profiling tool mm 250
Max. tool diameter retractable under the table at 90° mm 300
Max. diameter of the tenoning tool mm 300
Three-phase motor power starting from: kW/Hz 7 (8) / 50 (60)
