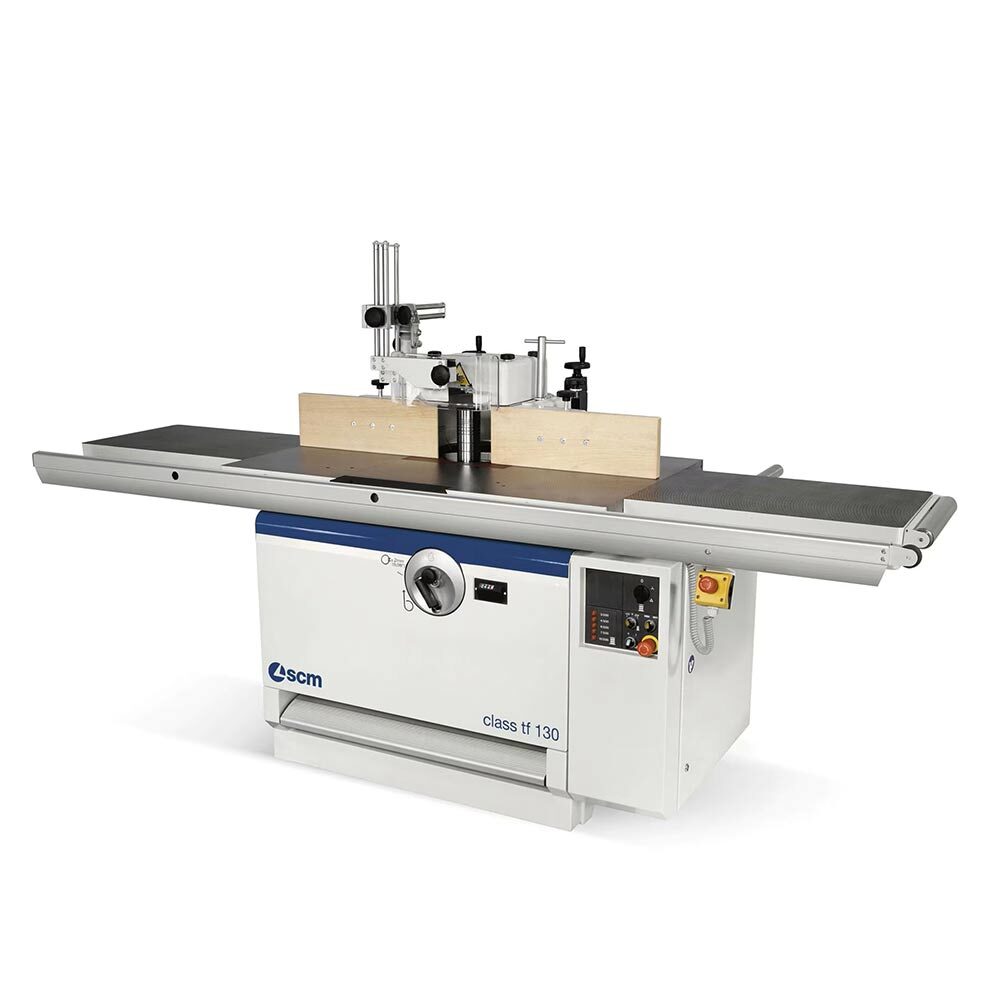

SCM Class TF 130

Guaranteed reduced machine setup time, greater safety, and ease of use.

SKU: SCM-CTF130 Category: Brand:

Description

The SCM Class TF 130 shaper is designed to be the ideal solution for any woodworking application, offering a choice between an essential, professional manual version and an advanced electronic version equipped with smart technologies that reduce setup time while enhancing safety and ease of use. Built for maximum stability and rigidity, it features a large cast-iron spindle moulder column and a protective cast-iron cup that shields internal components from dust and debris. Setup is both precise and reliable, with all adjustments made effortlessly via a front-mounted handwheel with mechanical readout. For even greater efficiency, the spindle moulder fence includes mechanical programming and digital readouts that position the tables with tenth-millimetre accuracy, eliminating the need for test cuts and ensuring fast, flawless adjustments every time.

Max. useful spindle length mm 180
Spindle speed rpm 3000/4500/6000/7000/10000
Max. diameter of the profiling tool mm 250
Max. tool diameter retractable under the table at 90° mm / inches 300
Max. diameter of the tenoning tool mm 300
Three-phase motor Hp 11
