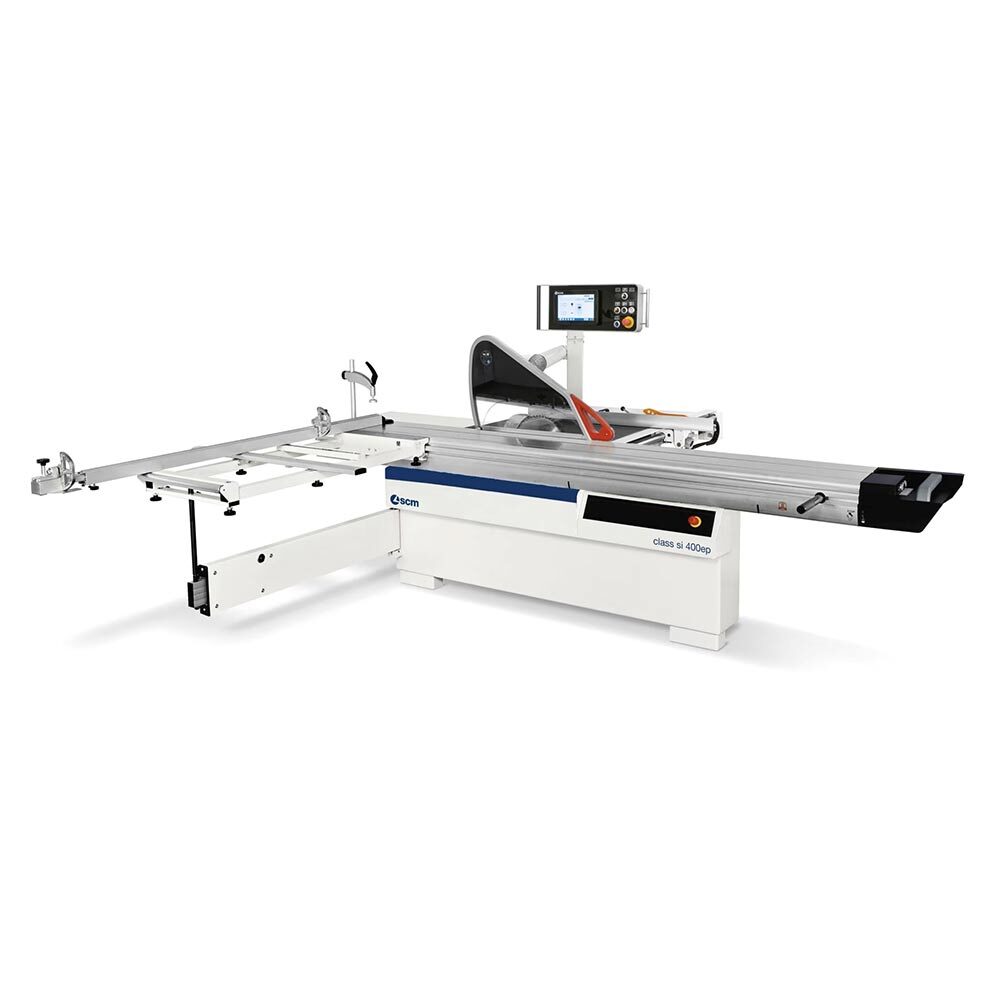

SCM Class SI 400EP

Superior technology combined with ease of use.

SKU: SCM-CSI400EP Category: Brand:

Description

The SCM Class SI 400EP sliding table saw offers advanced connectivity and Industry 4.0 features, allowing machines within the same network to share work programs, tools databases, and activity reports, with integration to the SCM Thundercut optimizer/sequencer app, self-diagnosis, and remote troubleshooting. Its new suspended protection features vertical sliding via a cage ball guide, wheels on the hood for easy workpiece overriding, and improved suction capacity. The sliding carriage, built with arch-ground steel slideways, ensures maximum cut quality over time without adjustment. The “eye-S” console combines a 10” color touchscreen with the Maestro Active interface for intuitive programming, while the motorized, programmable rip fence on recirculating ball screws with linear guides guarantees speed, precision, and effortless operation.

Max. saw blade diameter with mounted scorer mm 400
Maximum saw blade projection from table to 90°/45° mm 140/97
Cutting width on rip fence (Rip capacity) mm 1000 ÷ 1500
Max. squaring stroke of sliding table saw mm 3200 ÷ 3800 x 3200
Three-phase motor starting from kW/Hz 7 (8) / 50 (60)
