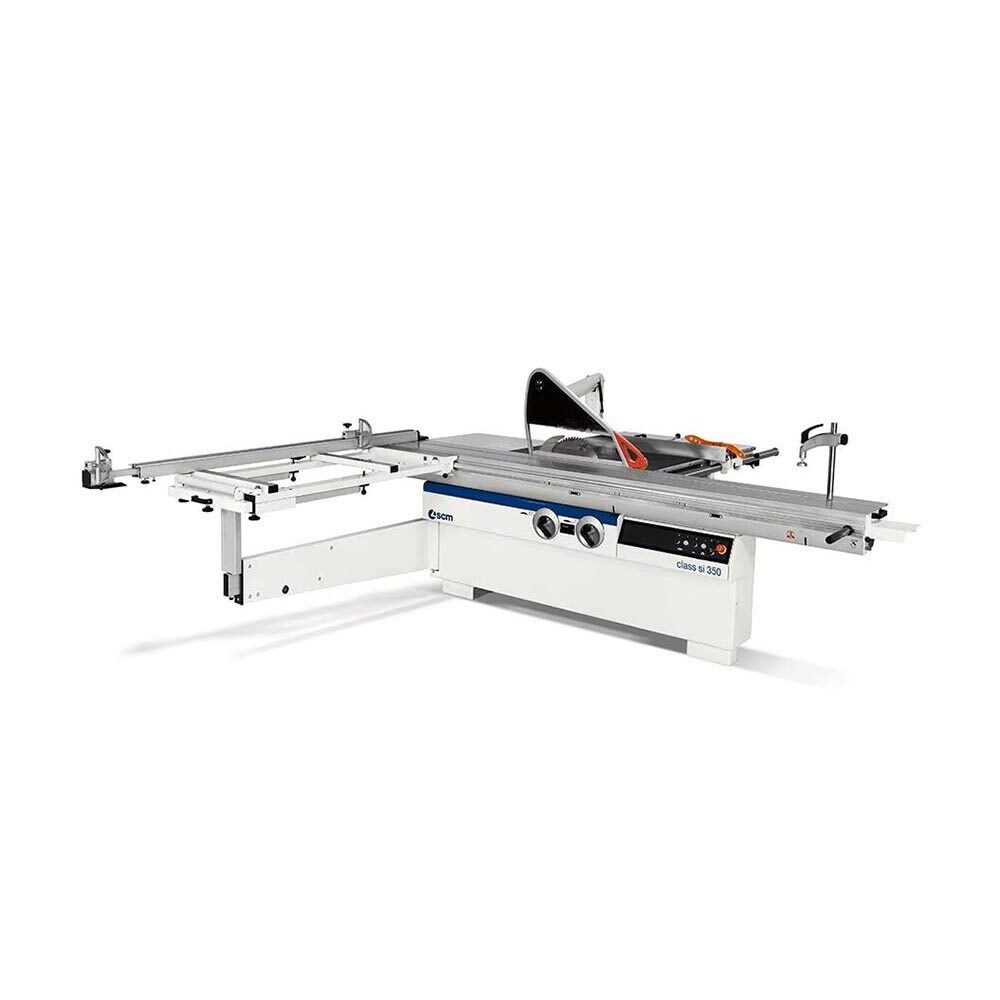

SCM Class SI 350

High construction quality for reliability and safe performance

SKU: SCM-CSI350 Category: Brand:

Description

The SCM Class SI 350 sliding table saw delivers exceptional cutting performance and precision with features designed for both efficiency and durability. Its new suspended protection hood slides vertically via a “cage ball guide,” with wheels on the hood allowing easy overriding of workpieces and improved dust suction capacity. The sliding carriage ensures maximum cut quality over time, requiring no adjustments thanks to SCM’s patented arch-ground steel slideways. Manual movements are smooth and precise, facilitated by a dust-protected gear box that provides direct and reliable transmission, so every handwheel adjustment corresponds exactly to the blade. The scoring unit is easily adjusted vertically and horizontally with intuitive mechanical levers and useful mechanical stops, allowing precise setup without leaving the front of the machine.

Max. saw blade diameter with mounted scorer mm 350
Maximum saw blade projection from table to 90°/45° mm 118/81
Cutting width on rip fence (Rip capacity) mm 1000 ÷ 1500
Max. squaring stroke of sliding table saw mm 3200 ÷ 3800 x 3200
Three-phase motor starting from kW/Hz 7 (8) / 50 (60)
