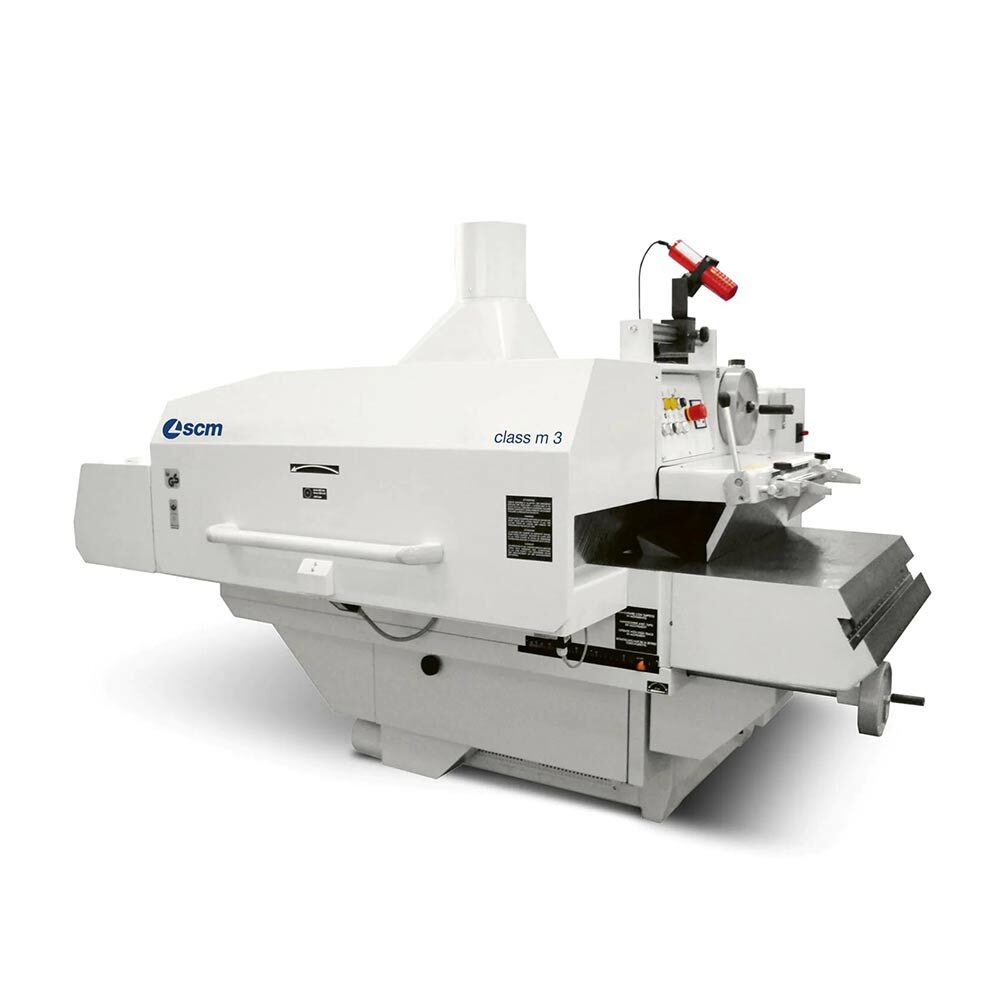

SCM Class M 3

Compact, simple construction for a high performance multiblade.

SKU: SCM-CM3 Category: Brand:

Description

The SCM Class M 3 multiblade rip saw is designed for both safety and versatility in high-precision woodworking. It features four anti-kickback finger barriers—three on top and one on the bottom—along with a chip-deflector screen to ensure secure operation. Customizable for any requirement, it offers a laser beam cutting line reference, ideal for extracting irregular planks or selecting clear parts of boards with knots and fissures using a rapid-movement fence with a single blade. A 6-stop programmable turret fence with pneumatic pedal positioning enables quick reference adjustments when multiple cutting programs are used on the same shaft sleeve. Additionally, the machine allows for an extra saw blade shaft sleeve, so blades can remain pre-set for repetitive cutting programs, making the SCM Class M 3 a highly flexible and efficient solution for professional rip-saw operations.

Feed track width mm 300
Maximum blade diameter mm 350
Minimum cutting length mm 390
Continuously adjustable feed track speed m/min 6-48
Motors power kW (HP) 18,5/25,5/37 (25/35/50)
