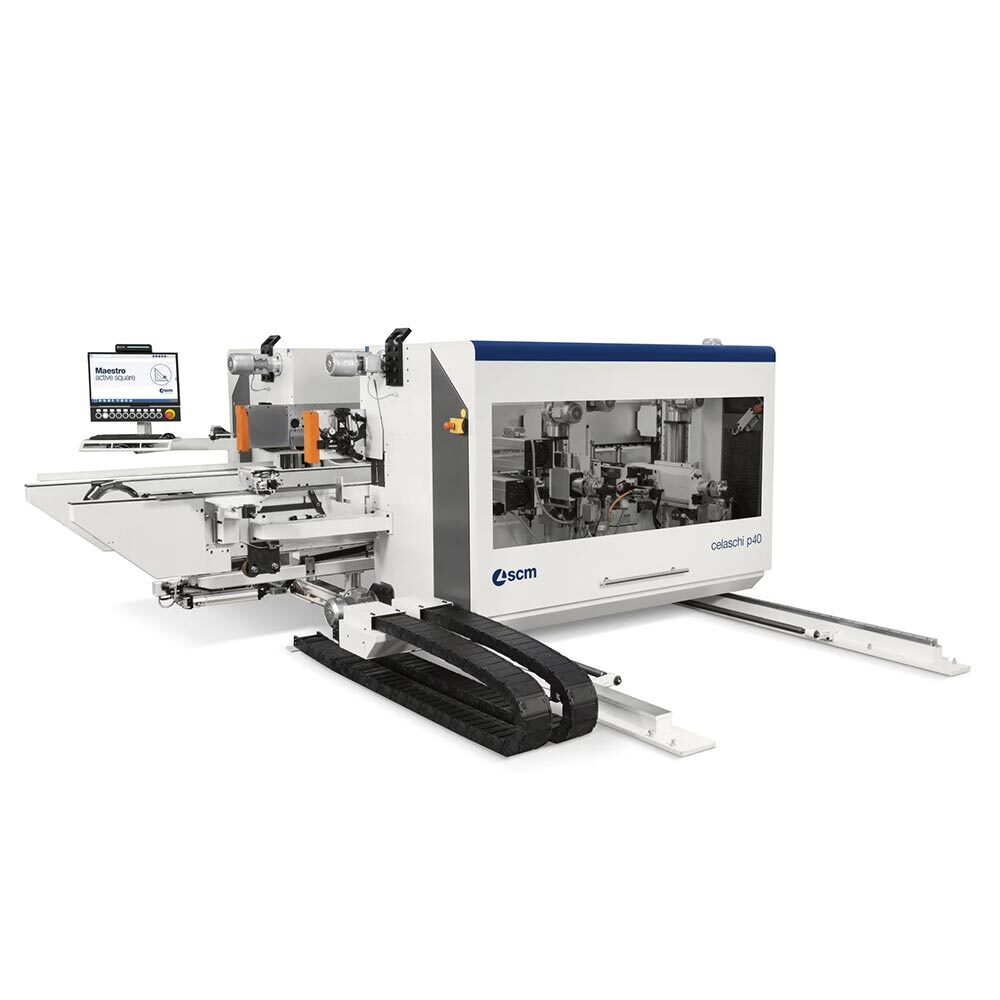

SCM Celaschi P40

Description

The SCM Celaschi P40 tenoner is a versatile solution for both standalone use and integration into production lines, designed to handle the most common panel machining needs with precision and efficiency. Automatic adjustment of the operating units and minimal setup time make it a high-performance machine that is also easy to operate. With a workpiece feed speed of up to 48 m/min and pre-arrangement for seamless in-line integration, the P40 delivers outstanding productivity. Its advanced technology ensures excellent finishing quality across a wide range of materials, including solid wood, PVC, fibro-cement, insulating materials, gypsum, and more. Quick and intuitive control of all main functions is provided through the eye-M PRIME operator console and Maestro Active Square software, making the Celaschi P40 a reliable and flexible choice for professional panel processing.

Machine frame 2-3-4-5 operating units per side
Workpiece transport system:
Maximum speed m/min 48
Chain tracks centre distance mm 2250-4960
Dogs pitch mm 450
Mobile beam:
Maximum beam opening mm 3100 (6100 on request)
Positioning speed m/min 2,8-10
Workpiece dimensions:
Width mm 150-3100 (6100 on request)
Thickness mm 2,8-10
Belt / pulleys system with electronic positioning:
Vertical stroke mm 20
Vertical adjustment mm 3-150
Positioning speed m/min 0,25
