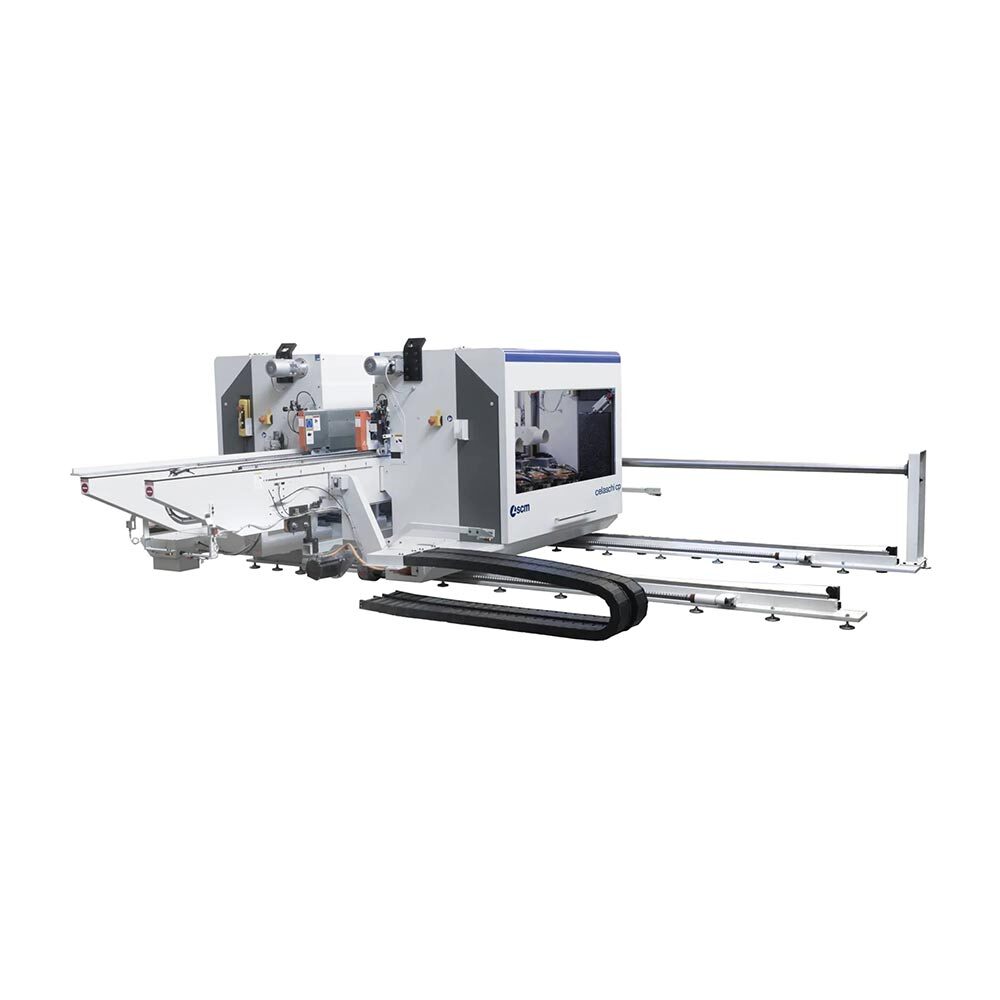

SCM Celaschi CP

SCM Celaschi CP

The compact double-end tenoner with combined flexibility and productivity in the smallest possible space.

SKU: SCM-CCP Category: Brand:

Description

The SCM Celaschi CP tenoner is engineered for precision processing of cabinet doors, drawer fronts, and solid wood or MDF panels, making it the perfect solution for companies facing growing demand for diversified and customized products. Its compact design minimizes machine downtime between jobs, maximizing productivity, while exceptional flexibility is ensured through rapid positioning of the mobile beam and operating units via brushless motors, alongside an automatic tool store with up to 10 positions. Equipped with high-speed HSK electrospindles featuring air or liquid cooling and specialized grinders with automatic wear compensation, the CP tenoner delivers outstanding processing accuracy, enabling consistently high-quality results for small batches and complex production requirements.

Machine frame 2-3-4-5-6-7-8 operating units per side
Workpiece transport system:
Maximum speed m/min 48
Chain tracks centre distance mm 2250-4670
Dogs pitch mm 450
Mobile beam:
Maximum beam opening mm 3600
Positioning speed m/min 12
Workpiece dimensions:
Width mm 190-3600
Thickness mm 3-150
Belt / pulleys system with electronic positioning:
Vertical stroke mm 20
Vertical adjustment mm 3-150
Positioning speed m/min 0,25
Operating units:
Positioning speed m/min 5
