SCM Action M

The best solution for those with high power and high bonding performance needs.

SKU: SCM-AM Category: Brand:

Description

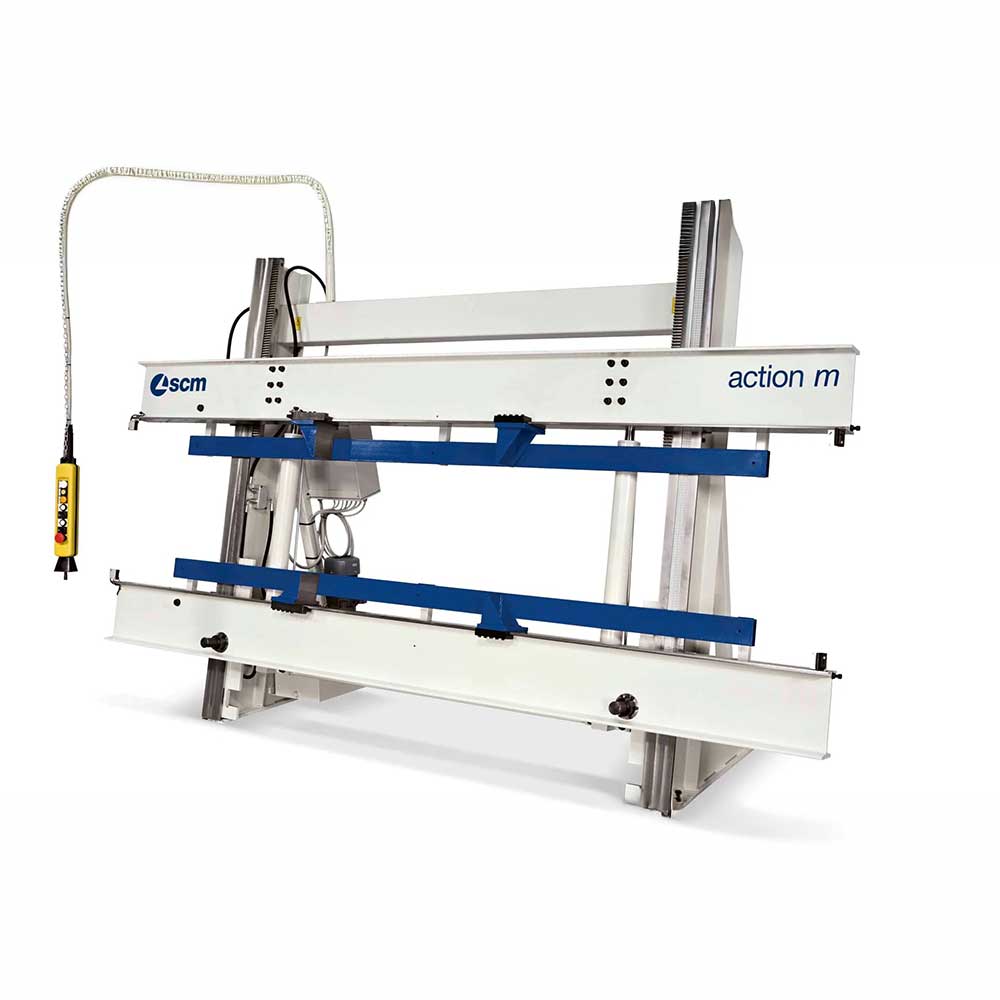

The SCM Action M Frame Press is designed for pressing and gluing all types of window systems, including windows, shutters, slatted shutters, and solid wood doors. Its high-rigidity structure ensures perfect squareness and stability, while a rack and pinion synchronized system with a torsion bar guarantees precise parallel movement of the pressure beam. The result is consistently accurate assembly and superior finishing quality for every frame produced.

Action M 30-20 Action M 35-25
Max working dimensions L x H mm 3000x2000 3500x2500
Min working dimensions L x H mm 250x350 250x375
Max vertical/horizontal thrust ton 7,4/2 7,4/2
Working height mm 480/1050 480/1050
Hydraulic pump power kW 2.1 2.1
