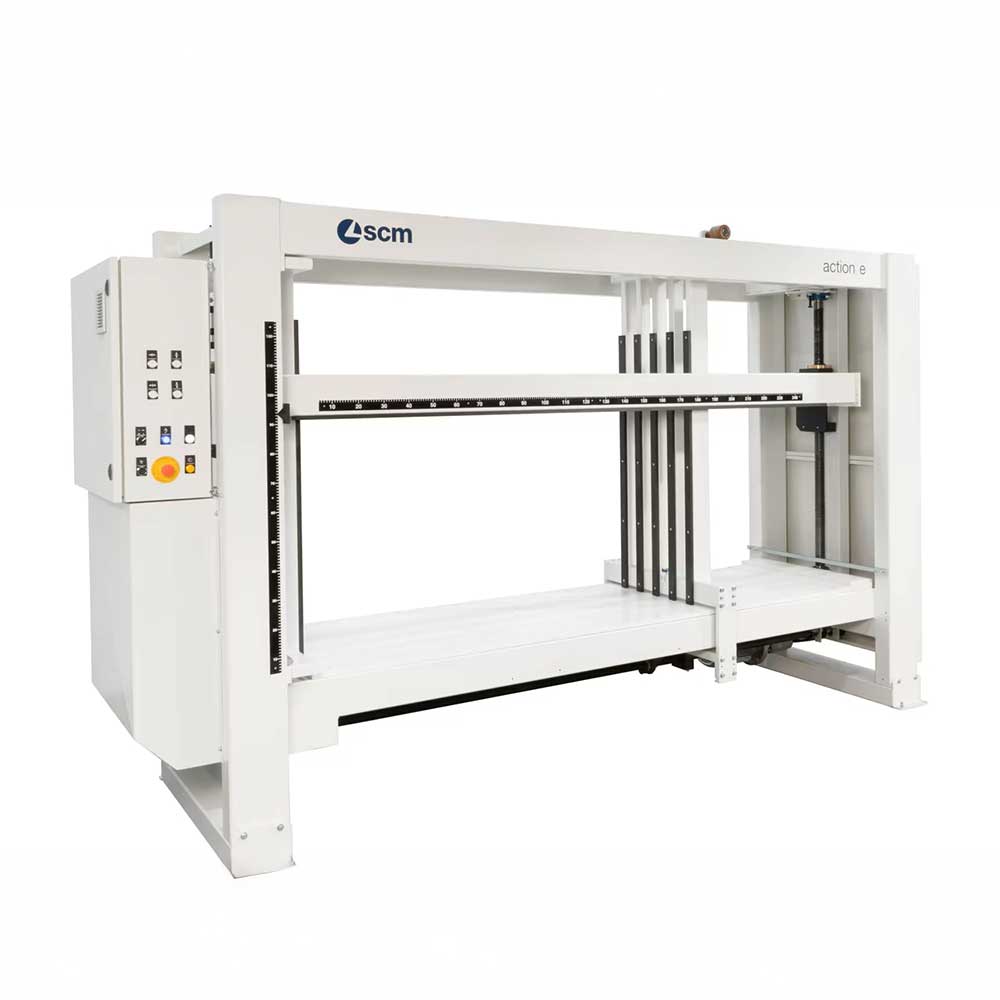

SCM Action E

Description

The SCM Action E is a manually operated cabinet press designed for manufacturers with low production volumes of up to 30 cabinets per shift. It ensures superior assembly quality through an effective full-surface pressing system featuring a precision comb design. User-friendly button controls provide maximum ease of operation, while properly dimensioned screws guarantee straight-sided, square, and accurate workpieces. For added convenience, an optional manually operated translating pre-assembly and unloading table with a tilter offers valuable support to the operator, enhancing workflow efficiency and ergonomics.

Cabinet length mm 250 ÷ 2400
Cabinet depth mm 250 ÷ 700
Cabinet height mm 270 ÷ 1100
Vertical pressure power kN 15
Side pressure power kN 10
Working height mm 600
Weight ton 2,2
Vertical pressure beam positioning speed (max) mm/s 50
Horizontal pressure beam positioning speed mm/s 45
