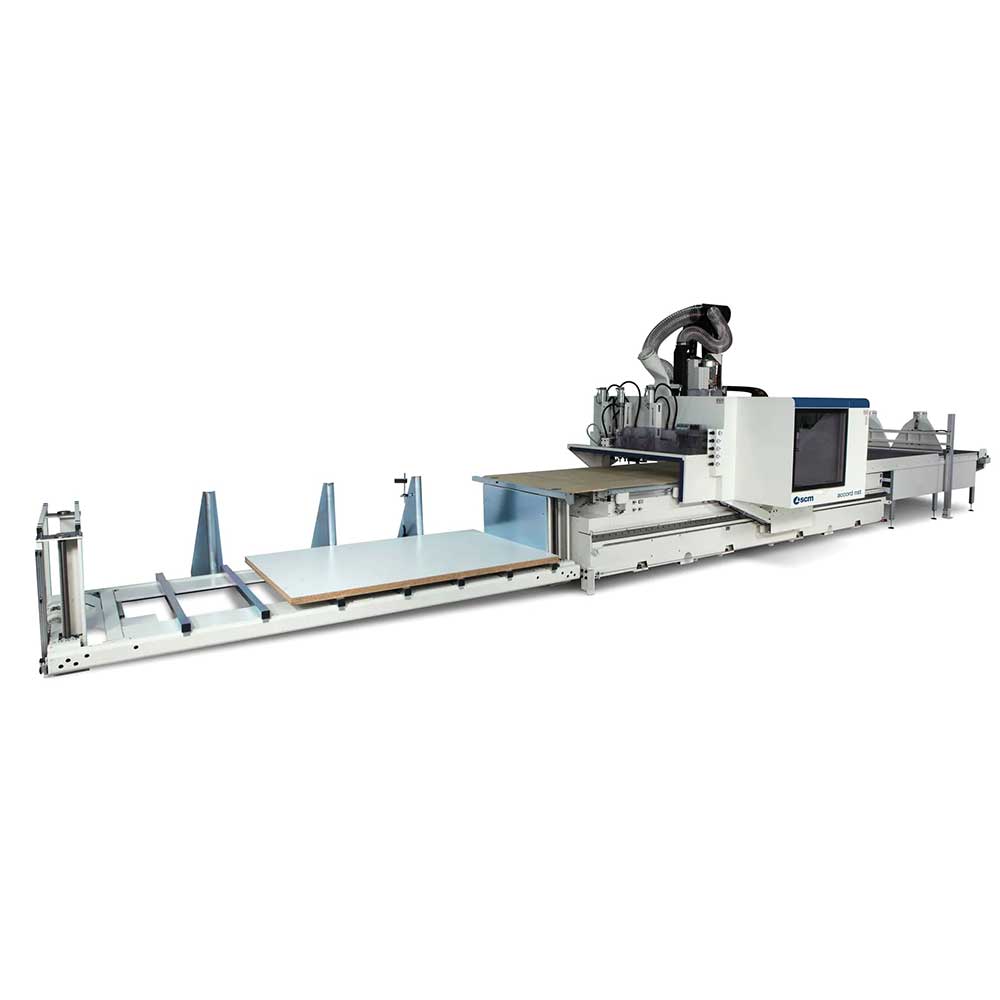

SCM Accord NST

A complete range of CNC machining centres.

SKU: SCM-ANST Category: Brand:

Description

The SCM Accord NST is equipped with automatic loading and unloading, allowing complete control of the work cycle with a single operator. Ideal for flexible production and capable of processing a wide range of materials—including lamellar wood, plywood, chipboard, and MDF—it combines heavy-duty profiling with PRISMA 5-axis machining heads for maximum flexibility and excellent finish quality. Its aluminum multi-function worktable with integrated vacuum ensures optimal workpiece hold, while the fixed table and mobile gantry structure guarantees precision and perfect finishing across the entire work area. Intelligent programming via MAESTRO software simplifies operation and supports multiple applications, making the Accord NST a reliable, high-performance solution for modern woodworking.

Working areas:
X-Y-Z axes dimensions mm 3650x1600x350
3650x2120x350
4250x2120x350
Axes:
X-Y-Z axes max. speed m/min 90-90-30
Machining head:
Max. electrospindle motor power kW 15
Max. electrospindle rotation speed rpm 24000
