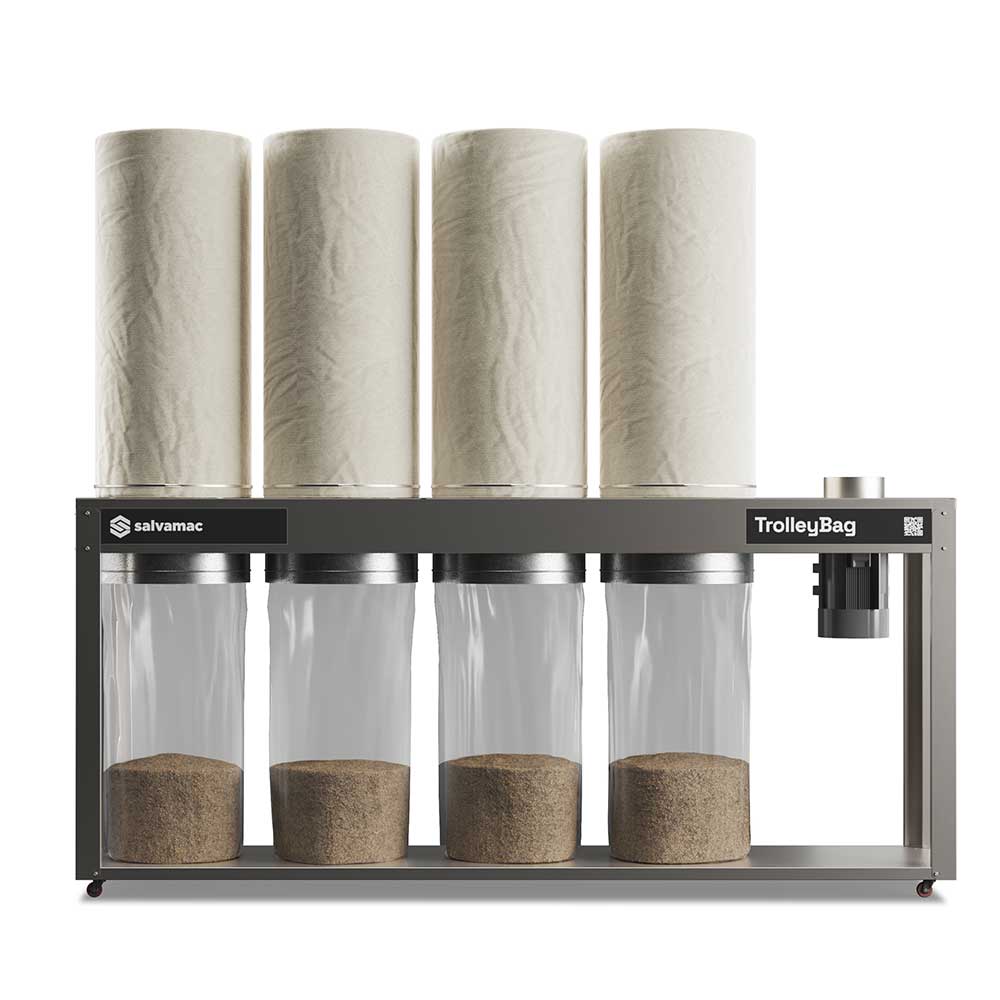

Salvamac Trolley Bag

Description

The SALVAMAC Trolley Bag Dust Collector is a compact, high-performance dust extraction system built on a solid hard-steel frame with a press-bent galvanized sheet-iron structure for durability and easy assembly. Its specially designed suction system maximizes motor efficiency, while quick-closing rings allow the collecting bags to be changed in seconds. Fully galvanized and equipped with a watertight electrical box with circuit breaker, the unit is designed for indoor, provisional or temporary use and features four wheels for effortless movement between machines. With optimized calibration between the filter and collection bags, fast installation, and increased collection capacity in a compact footprint, it delivers reliable dust control wherever it’s needed inside the factory.

Model Trolley Bag 1 Trolley Bag 2 Trolley Bag 3 Trolley Bag 4
Power 1,5 KW - 2HP 2,2KW - 3 HP 4 KW - 5,5 HP 5,5 KW - 7,5HP
Dimension AxBxC 1.180x580x2.460 1.730x580x2.460 2.280x580x2.460 2.840x580x2.460
Filtering bags N-mm 1 Ø 500 2 Ø 500 3 Ø 500 4 Ø 500
Suction hole mm Ø 180 Ø 200 Ø 220 Ø 250
N° collecting bags 1 Ø 500 2 Ø 500 3 Ø 500 4 Ø 500
Air Flow max m3/h 2.500 2.950 4.600 6.000

No downloads available for this product.
