Salvamac Hightech

Description

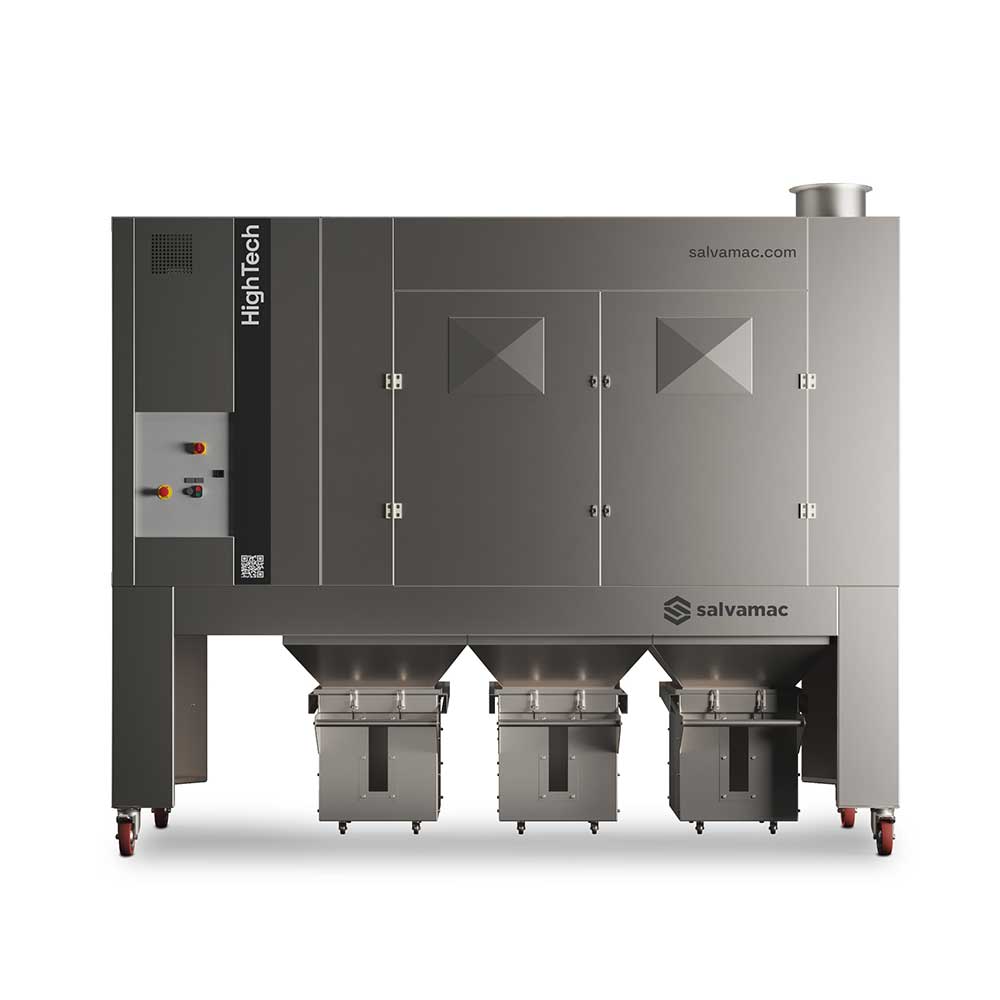

The SALVAMAC HighTech Dust Collector delivers exceptional dust extraction with high-efficiency negative pressure, capturing fine to medium particles with minimal residual emissions of less than 0.1 mg/m³, meeting H3 standards. Built from durable galvanized sheet iron, its fully enclosed construction ensures long-lasting performance for both indoor and outdoor industrial applications. Designed for plug-and-extract convenience, it features a specialised motor, straight-blade impeller, and automatic cleaning system for reliable, low-maintenance operation. The unit includes wheeled collection bins for easy disposal, secure closing panels for enhanced containment, and a CE-certified control panel (400V 50Hz) with high-quality cotton sleeve or cartridge filters. Compact yet powerful, the HighTech extractor is also available in an ATEX-compliant version for environments requiring the highest safety standards.

Model Hightech 4.000 Hightech 6.000 Hightech 8.000 Hightech 12.000
Power 5.5 KW 7.5KW 11 KW 15KW
Dimension 3000x1200x2600 3200x1200x2600 3500x1200x2600 2500x1200x2600
N° filtering elements 40 (sleeves) 60 (sleeves) 32 (catridges) 36 (catridges)
Filtration area m2 20 27 144 162
Wheeled collection bins 2/ 620x390x530 2/ 620x490x530 4/ 620x490x530 4/ 620x490x530
Pressure/residual/standard neg./ <0.1mg/m3/H3 neg./ <0.1mg/m3/H3 neg./ <0.1mg/m3/H3 neg/ <0.1mg/m2/H3
Air capacity m3/h 4000 6000 8000 12,000
