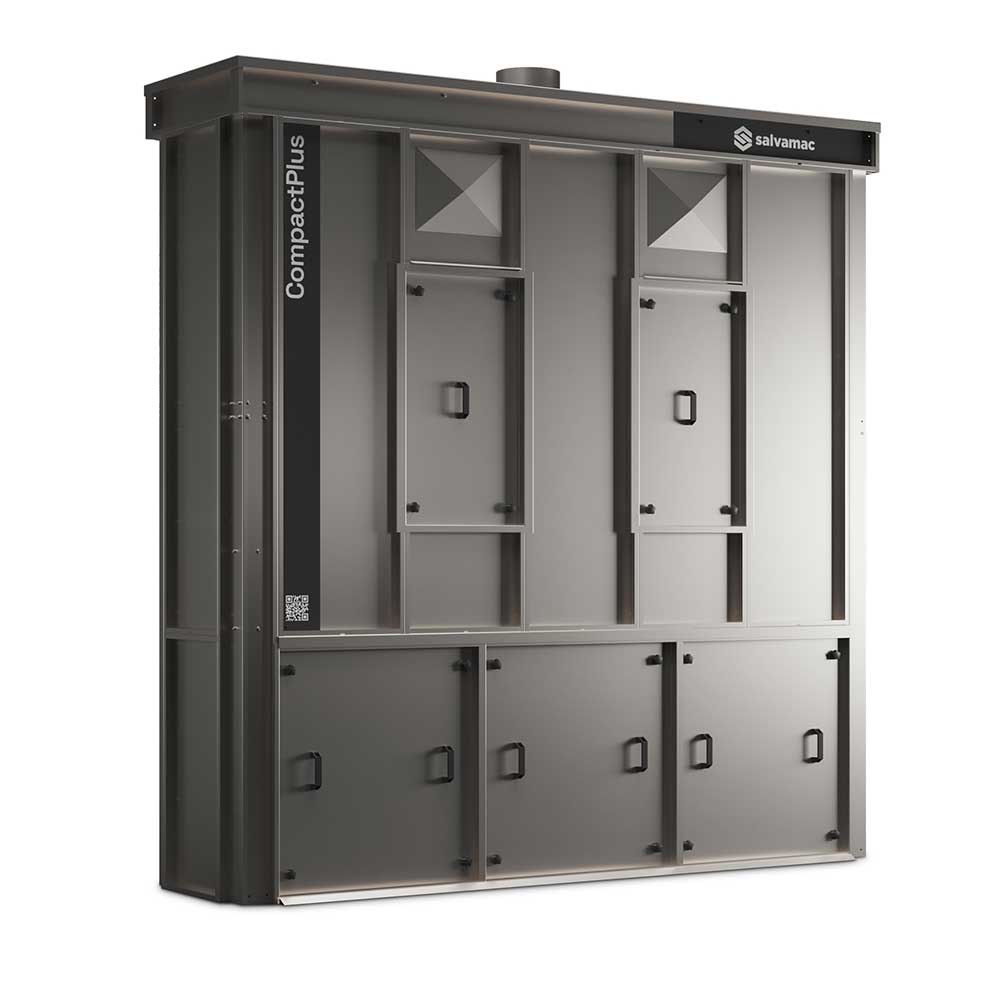

Salvamac Compact Plus

The compact dust extraction with mechanical shaker cleaning system.

SKU: SALV-CP Category: Brand:

Description

The SALVAMAC Compact Plus Dust Collector delivers a balance of performance, quality, and affordability, offering efficient filtration for a wide range of non-explosive dusts and materials. Built from durable galvanised sheet iron, it combines a compact design with increased capacity, easy transport, and straightforward assembly. Suitable for both indoor and outdoor use, it features an enclosed top for added protection and is also available in an ATEX-compliant version with bottom closure, depending on local regulations. An external motor paired with an internal straight-blade impeller ensures strong, reliable extraction, while a watertight control box with a built-in circuit breaker provides safe, direct-start operation. To minimise maintenance and maximise performance, each unit includes an integrated mechanical shaker system for fast, effective filter cleaning.

Model 4.500 6.000 9.500
Power 4 KW - 5.5 HP 5.5 KW - 7.5HP 7.5 KW - 10
Dimension AxBxC 775x2900x3200 775x4000x3200 775x4000x3200
N° sleeves Ø 180 16 24 24
Sleeves height 1.500mm 1.500mm 1500mm
N° collecting bags 4 Ø 500 6 Ø 500 6 Ø 500
Aspiration hole mm Ø 250 Ø 350 Ø 350
Air Flow max m3/h 4.500 6.000 95000
Mechanical Shaker 1x0,1 HP 1x0,1 HP 1x0,1 HP
