Product Description :

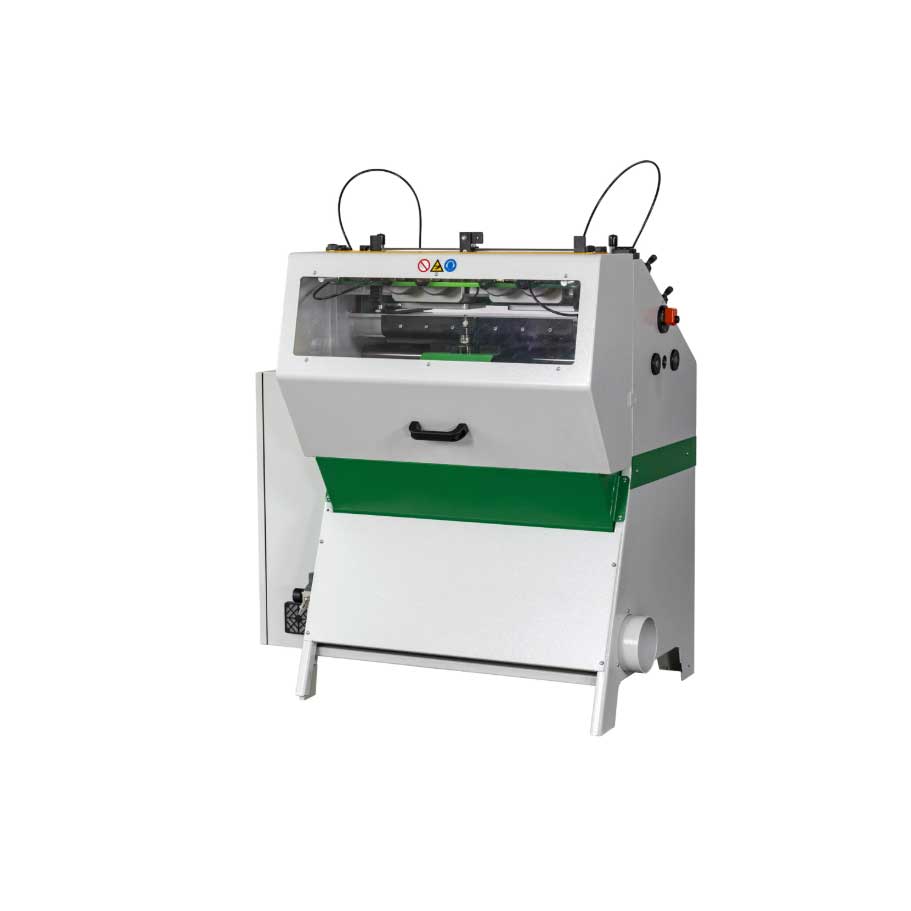

The two-axis automatic mill cutter with numerical control, OMEC 750 CN-C, is designed to indent dovetails and parallel indents for drawers and several furniture elements. Model 750 CN-C is equipped with a spindle and a mill cutter that allow the production of indents of different heights. The machine is designed to cut single male or female workpieces, or both simultaneously. Pieces can be clamped and released in manual mode by means of pneumatic valves. Controls are issued from a numerically controlled push button panel. Model 750 CN-C is controlled by a numerical control system that is programmed to guarantee the utmost machining flexibility and to change the machining limits within the following variables:
- pitch of indents
- number of indents
- depth of indents
- dimensions of the pieces
- cutting speed and tool feeding
- compensation of the tool radius variation
All the adjustments can be easily carried out following the software instructions of the machine displayed on the monitor.
Technical Data:
- On board machine installed power: 2,7 Kw
- Working pressure: 0,7 MPascal
- Electrical spindle: 1 N°
- Electrical spindle revolutions: 18.000 n/1′
- Center tot center of indents: variabile
- Drawers production: 60 n/h
- Machine weight: 312 kg
- Packed machine weight: 400 kg
- Over-all dimensions (l x w x h): 112x80x120 cm
- Packing dimensions:135x97x145 cm
