Product Description:

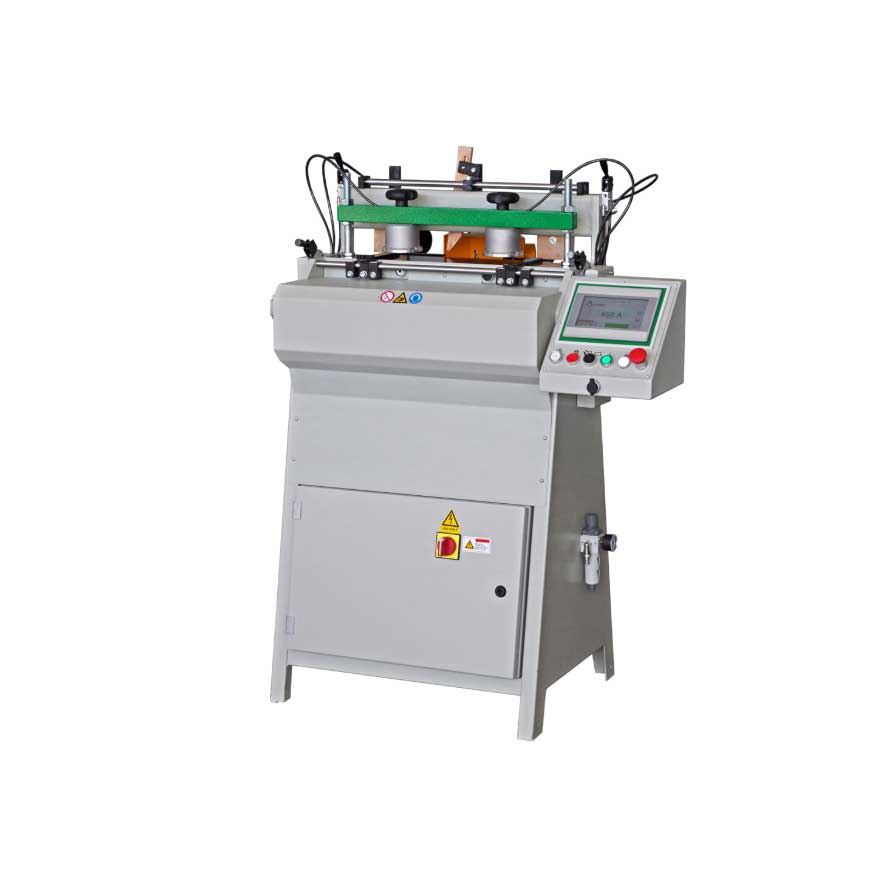

The two-axis automatic mill cutter with numerical control, OMEC 650-A, is designed to indent dovetails and parallel indents for drawers and several furniture elements. Model 650-A is equipped with a spindle and a mill cutter that allow the production of indents of different heights. The machine is designed to cut single male or female workpieces, or both simultaneously. Pieces can be clamped and released in manual mode by means of pneumatic valves. Controls are issued from a numerically controlled push button panel. The 650-A model is controlled by a CNC system that is programmed to manufacture two types of fixed pitch joints (25mm and 50mm). All the adjustments can be easily carried out following the software instructions of the machine displayed on the monitor.
Technical data:
- On board machine installed power: 2,5 Kw
- Working pressure: 0,7 MPascal
- Spindle: 1 N°
- Spindle revolutions: 16500 n/1′
- Center tot center of indents: 25-50 mm
- Drawers production: 40 n/h
- Machine weight: 171 kg
- Packed machine weight: 221 kg
- Over-all dimensions (l x w x h): 97x76x137 cm
- Packing dimensions: 122x87x153 cm
