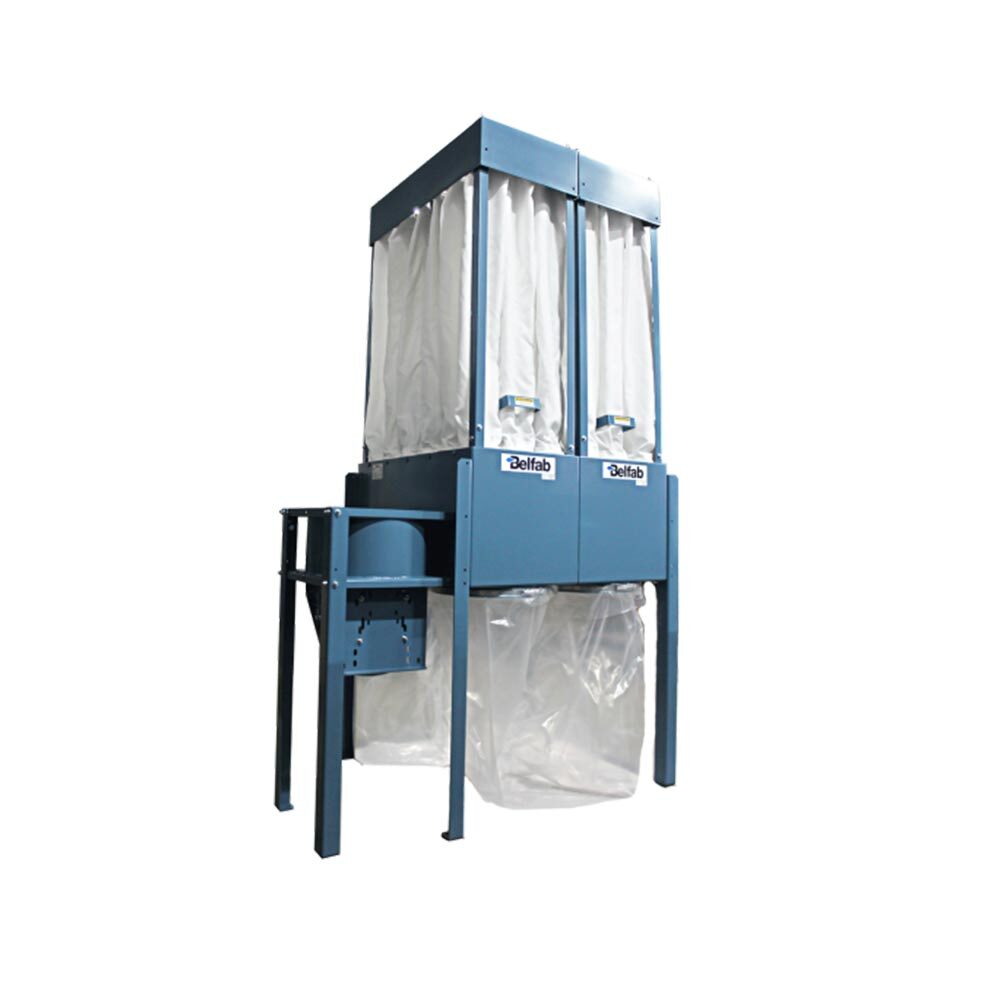

Belfab NBM-OP Open Modular Dust Collector

Description

The Belfab NBM-OP Open Modular Dust Collector is a high-efficiency, enclosure-less bag filtration system designed specifically for woodworking applications, offering a compact height of under 11 feet. Built to function as either a dedicated stand-alone unit or the main collector in a facility, the NBM-OP features BELFAB’s modular filter technology, allowing for cost-effective expansion of filtration surface area and maintaining an optimal air-to-cloth ratio better than 6:1. Its upgradable blower system delivers flexibility, increasing performance from 5 HP/2,500 CFM up to 20 HP/6,000 CFM, while the optional HUMMER 1800 RPM fan ensures super-quiet operation at up to 5,000 CFM indoors. The unit combines a low-maintenance direct-drive centrifugal fan, TEFC motor (CSA-UL/CSA-US approved), and high-efficiency needle felt filter bags with a vertical mechanical shaker for easy cleaning. Configured for push applications, the NBM-OP also offers options such as extended legs for enhanced dust disposal, silencers for quieter operation, and pre-wired magnetic starters, making it a versatile and space-efficient solution for any woodworking environment.

Filter module arrangements:
Number of filter modules 1 2 3 4 5 6
Filtration surface sq.ft 165 330 495 660 825 990
Dimensions (WxDxH) in. 48x48x130 72x48x130 96x48x130 120x48x130 144x48x130 168x48x130 (**add 18" to width when equipped with a hummer blower module**)
Module weight lbs 250 500 750 1000 1250 1500

Blower Type: Standard Blower - 3600RPM Hummer Blower - 1800RPM
Fan Module 5HP 7.5 HP 10HP 15HP 20HP 10 HP 15 HP 20HP
Capacity (CFM) 2500 3500 4600 5000 6000 4600 5000 6000
Recommended number of filter modules 1-3 2-4 2-5 3-6 4-6 3-6 4-6 4-6
Sound pressure without a silencer (dB) 82 84 88 92 92 80 81 83
Inlet diameter in. 9 10 12 14 16 12 14 16
Module weight lbs 200 240 250 340 360 350 450 560
