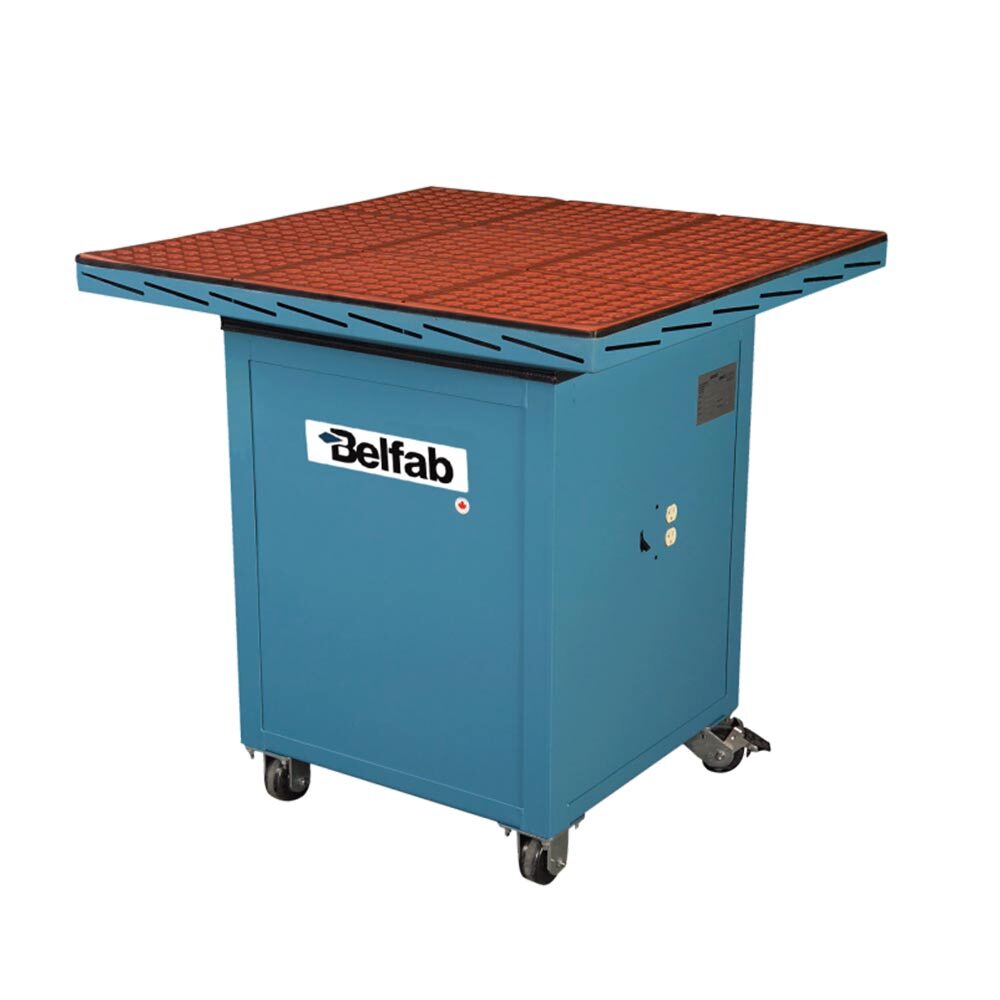

Belfab Downdraft Table

Perfect for light to medium duty woodworking applications such as sanding and finishing.

SKU: BELDT Category: Brand:

Description

The Belfab Downdraft Table is an ergonomic, energy-efficient solution designed for light to medium-duty woodworking tasks such as sanding and finishing. Available in three sizes and mounted on wheels for easy mobility, the table features a 360° accessible work surface with robust, half-inch thick anti-slip mats that secure parts and protect them from damage. Its gas-cylinder assisted, counter-balanced tabletop provides effortless one-handed access for maintenance, allowing quick filter removal and cleaning. The downdraft table offers versatile filtration options, including carbon, bag, and HEPA filters, all designed to capture 100% of collected dust particles and integrate easily with a variety of panel filter types for optimal performance. Equipped with dual inlet blowers generating over 1,800 CFM each, located on the clean side of the filters for extended life, the unit delivers uniform suction across the entire work surface while consuming 50% less horsepower. Optional accessories, such as filter cleaning hoods, back and side shields, and replacement mats, enhance functionality and adaptability for any woodworking environment.

Model 3636DT 3672DT 48108DT
Table Top Dimensions (L×W×H) (in.) 36×36×36 36×72×36 48×108×36
Panel Filter Efficiency 98.00% 98.00% 98.00%
Max Amperage Load 115v – 1ph (L1,N): 11A
240/120v – 1ph (L1,L2,N): 15A
208/120v – 3ph (L1,L2,L3,N): 15A
240/120v – 1ph (L1,N): 20A
208/120v – 3ph (L1,L2,L3,N): 20A
208/230v – 1ph (L1,L2): 11A
208/230v – 3ph (L1,L2,L3): 11A
208/230v – 3ph (L1,L2,L3): 11A
460/600v – 3ph (L1,L2,L3): 4A
Auxiliary Electrical Outlet
(connector not included)
1 Duplex 115v – 1ph 2 × Duplex 115v – 1ph Electrical outlet not available
Blower Motor HP 1 × 3/4 HP 2 × 3/4 HP 3 × 3/4 HP
CFM 1800 2 × 1800 3 × 1800
Sound Pressure at 10' (dB) 74 78 80
Weight for Shipping (lbs) 300 550 1000
